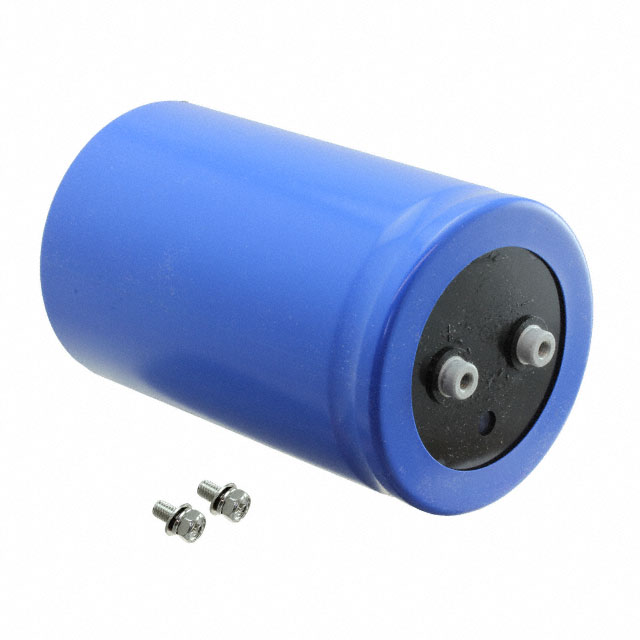

E36D501LGN682MFE3M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy E36D501LGN682MFE3M with confidence from Components-World.HK, 1 Year Warranty
Dowload E36D501LGN682MFE3M Details in PDFSee Product Specifications for product details.
Buy E36D501LGN682MFE3M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | E36D501LGN682MFE3M |
|---|---|
| Manufacturer | Nippon Chemi-Con |
| Description | CAP ALUM 6800UF 20% 500V SCREW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $25.482 | $23.888 | $20.703 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | E36D501LGN682MFE3M | Manufacturer | Nippon Chemi-Con |
|---|---|---|---|
| Description | CAP ALUM 6800UF 20% 500V SCREW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1585 pcs | Data sheet | U36D/E36D Series |
| Category | Capacitors | Voltage - Rated | 500V |
| Tolerance | ±20% | Surface Mount Land Size | - |
| Size / Dimension | 3.500" Dia (88.90mm) | Series | U36D |
| Ripple Current @ Low Frequency | 8.35A @ 120Hz | Ripple Current @ High Frequency | 11.69A @ 3kHz |
| Ratings | - | Polarization | Polar |
| Packaging | Bulk | Package / Case | Radial, Can - Screw Terminals |
| Other Names | 565-4831 E36D501LGN682MFE3M-ND |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Lead Spacing | 1.252" (31.80mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 5.625" (142.88mm) | ESR (Equivalent Series Resistance) | 76 mOhm @ 120Hz |
| Detailed Description | 6800µF 500V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 76 mOhm @ 120Hz 2000 Hrs @ 85°C | Capacitance | 6800µF |
| Applications | General Purpose |
