Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UZS1C220MCL1GB

UZS1C220MCL1GB

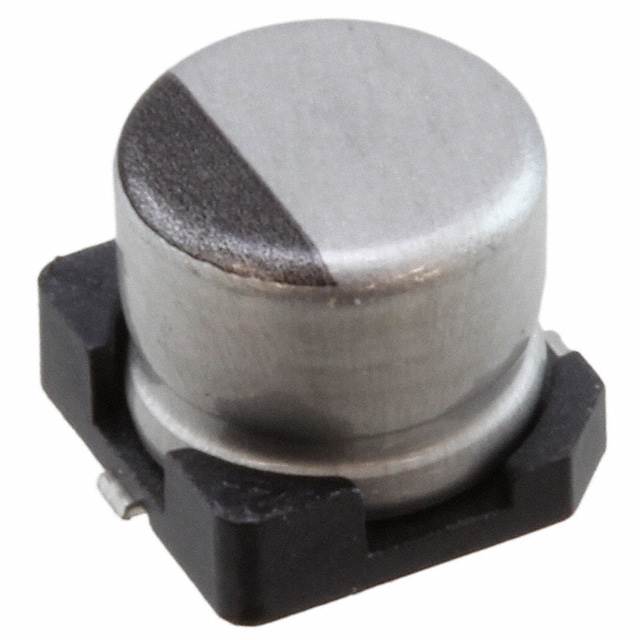

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UZS1C220MCL1GB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UZS1C220MCL1GB
Manufacturer	Nichicon
Description	CAP ALUM 22UF 20% 16V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	25000 pcs	50000 pcs	100000 pcs
~~In Stock~~ 727463 pcs
Reference Price (In US Dollars)	1000 pcs	2000 pcs	5000 pcs	10000 pcs
	$0.048	$0.045	$0.043	$0.04
	$0.038	$0.035	$0.033

Product parameter
Data sheet

Product parameter

Part Number	UZS1C220MCL1GB	Manufacturer	Nichicon
Description	CAP ALUM 22UF 20% 16V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	727463 pcs	Data sheet	Chip Type Tape Spec Aluminum Electrolytic Land, Reflow UZS Series
Category	Capacitors	Voltage - Rated	16V
Tolerance	±20%	Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Size / Dimension	0.197" Dia (5.00mm)	Series	UZS
Ripple Current @ Low Frequency	37mA @ 120Hz	Ripple Current @ High Frequency	55.5mA @ 10kHz
Ratings	-	Polarization	-
Packaging	Tape & Reel (TR)	Package / Case	Radial, Can - SMD
Other Names	493-10138-2 UZS1C220MCL1GB-ND	Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lifetime @ Temp.	2000 Hrs @ 85°C
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.181" (4.60mm)	ESR (Equivalent Series Resistance)	-
Detailed Description	22µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C	Capacitance	22µF
Applications	General Purpose
