Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UWH1H220MCL1GS

UWH1H220MCL1GS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UWH1H220MCL1GS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UWH1H220MCL1GS
Manufacturer	Nichicon
Description	CAP ALUM 22UF 20% 50V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 303951 pcs
Reference Price (In US Dollars)	1000 pcs	2000 pcs	5000 pcs	10000 pcs	25000 pcs
Reference Price (In US Dollars)	$0.093	$0.087	$0.082	$0.079	$0.076

Product parameter
Data sheet

Product parameter

Part Number	UWH1H220MCL1GS	Manufacturer	Nichicon
Description	CAP ALUM 22UF 20% 50V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	303951 pcs	Data sheet	Chip Type Tape Spec Aluminum Electrolytic Land, Reflow UWH Series
Category	Capacitors	Voltage - Rated	50V
Tolerance	±20%	Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Size / Dimension	0.315" Dia (8.00mm)	Series	UWH
Ripple Current @ Low Frequency	38mA @ 120Hz	Ripple Current @ High Frequency	57mA @ 10kHz
Ratings	-	Polarization	-
Packaging	Tape & Reel (TR)	Package / Case	Radial, Can - SMD
Other Names	493-9771-2 UWH1H220MCL1GS-ND	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	20 Weeks	Lifetime @ Temp.	1000 Hrs @ 125°C
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.244" (6.20mm)	ESR (Equivalent Series Resistance)	-
Detailed Description	22µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 125°C	Capacitance	22µF
Applications	General Purpose

Related products
Related news

Related products

UWH1E221MCL1GS Image

Part#:~~UWH1E221MCL1GS~~
Manufacturers:~~Nichicon~~
Description:~~CAP ALUM 220UF 20% 25V SMD~~
In Stock:~~282567~~

~~$0.082/pcs~~RFQ

UWH1V101MCL1GS Image

Part#:~~UWH1V101MCL1GS~~
Manufacturers:~~Nichicon~~
Description:~~CAP ALUM 100UF 20% 35V SMD~~
In Stock:~~270290~~

~~$0.084/pcs~~RFQ

UWH1H330MCL1GS Image

Part#:~~UWH1H330MCL1GS~~
Manufacturers:~~Nichicon~~
Description:~~CAP ALUM 33UF 20% 50V SMD~~
In Stock:~~232119~~

~~$0.082/pcs~~RFQ

UWH1C101MCL1GS Image

Part#:~~UWH1C101MCL1GS~~
Manufacturers:~~Nichicon~~
Description:~~CAP ALUM 100UF 20% 16V SMD~~
In Stock:~~137530~~

~~$0.162/pcs~~RFQ

Part#:~~B43044F2157M~~
Manufacturers:~~EPCOS~~
Description:~~CAP ALUM 150UF 20% 250V RADIAL~~
In Stock:~~5585~~

UWH1H470MCL1GS Image

Part#:~~UWH1H470MCL1GS~~
Manufacturers:~~Nichicon~~
Description:~~CAP ALUM 47UF 20% 50V SMD~~
In Stock:~~246160~~

~~$0.083/pcs~~RFQ

UWH1H100MCL1GS Image

Part#:~~UWH1H100MCL1GS~~
Manufacturers:~~Nichicon~~
Description:~~CAP ALUM 10UF 20% 50V SMD~~
In Stock:~~276282~~

~~$0.075/pcs~~RFQ

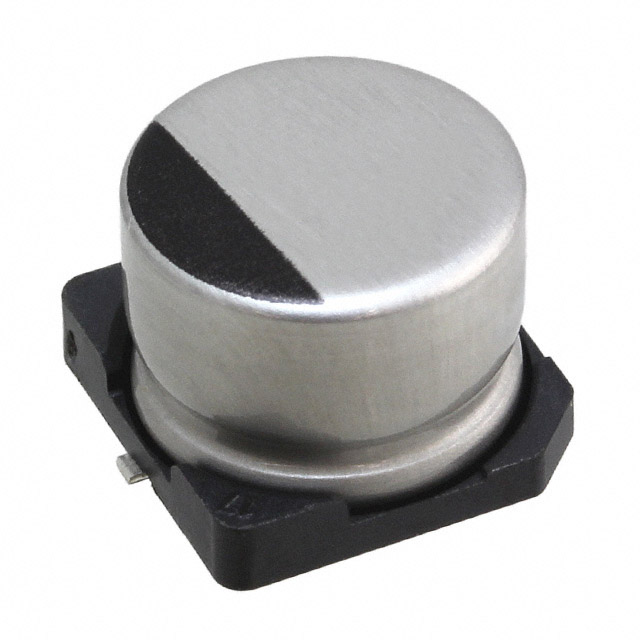

UWH1E470MCL1GS Image
