Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UWF1V470MCL1GS

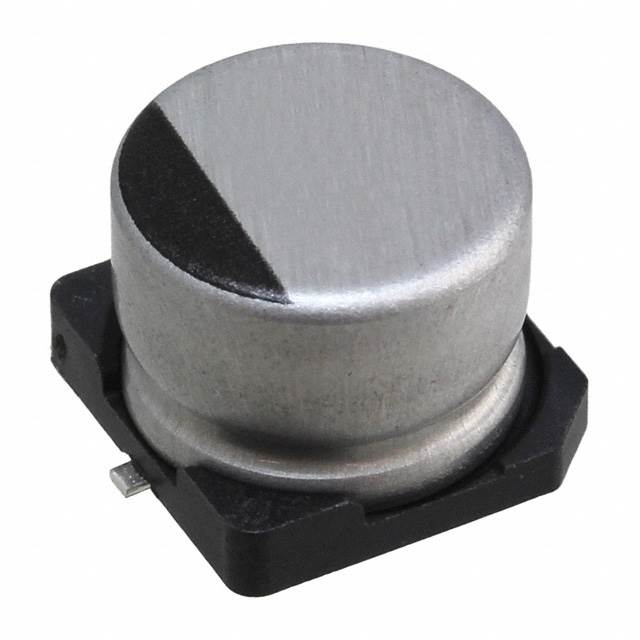

UWF1V470MCL1GS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UWF1V470MCL1GS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UWF1V470MCL1GS
Manufacturer	Nichicon
Description	CAP ALUM 47UF 20% 35V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 301059 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs
Reference Price (In US Dollars)	$0.217	$0.153	$0.101	$0.075

Product parameter
Data sheet

Product parameter

Part Number	UWF1V470MCL1GS	Manufacturer	Nichicon
Description	CAP ALUM 47UF 20% 35V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	301059 pcs	Data sheet	Chip Type Tape Spec Aluminum Electrolytic Land, Reflow UWF Series
Category	Capacitors	Voltage - Rated	35V
Tolerance	±20%	Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Size / Dimension	0.315" Dia (8.00mm)	Series	UWF
Ripple Current @ Low Frequency	75mA @ 120Hz	Ripple Current @ High Frequency	150mA @ 100kHz
Ratings	-	Polarization	-
Packaging	Original-Reel®	Package / Case	Radial, Can - SMD
Other Names	493-9732-6	Operating Temperature	-55°C ~ 105°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	20 Weeks	Lifetime @ Temp.	1000 Hrs @ 105°C
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance	800 mOhms	Height - Seated (Max)	0.244" (6.20mm)
ESR (Equivalent Series Resistance)	-	Detailed Description	47µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Capacitance	47µF	Applications	General Purpose
