Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UWD1V100MCL1GS

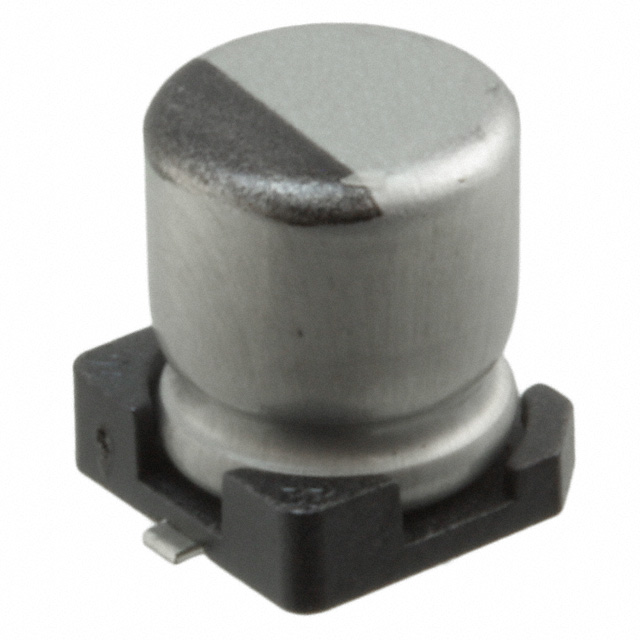

UWD1V100MCL1GS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UWD1V100MCL1GS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UWD1V100MCL1GS
Manufacturer	Nichicon
Description	CAP ALUM 10UF 20% 35V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	25000 pcs	50000 pcs	100000 pcs
~~In Stock~~ 882052 pcs
Reference Price (In US Dollars)	1000 pcs	2000 pcs	5000 pcs	10000 pcs
	$0.039	$0.037	$0.035	$0.033
	$0.031	$0.029	$0.027

Product parameter
Data sheet

Product parameter

Part Number	UWD1V100MCL1GS	Manufacturer	Nichicon
Description	CAP ALUM 10UF 20% 35V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	882052 pcs	Data sheet	Chip Type Tape Spec Aluminum Electrolytic Land, Reflow UWD Series
Category	Capacitors	Voltage - Rated	35V
Tolerance	±20%	Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Size / Dimension	0.197" Dia (5.00mm)	Series	UWD
Ripple Current @ Low Frequency	75mA @ 120Hz	Ripple Current @ High Frequency	150mA @ 100kHz
Ratings	-	Polarization	-
Packaging	Tape & Reel (TR)	Package / Case	Radial, Can - SMD
Other Names	493-6297-2 UWD1V100MCL1GS-ND	Operating Temperature	-55°C ~ 105°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	20 Weeks	Lifetime @ Temp.	2000 Hrs @ 105°C
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance	760 mOhms	Height - Seated (Max)	0.240" (6.10mm)
ESR (Equivalent Series Resistance)	-	Detailed Description	10µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Capacitance	10µF	Applications	General Purpose
