Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UWD1C101MCL1GS

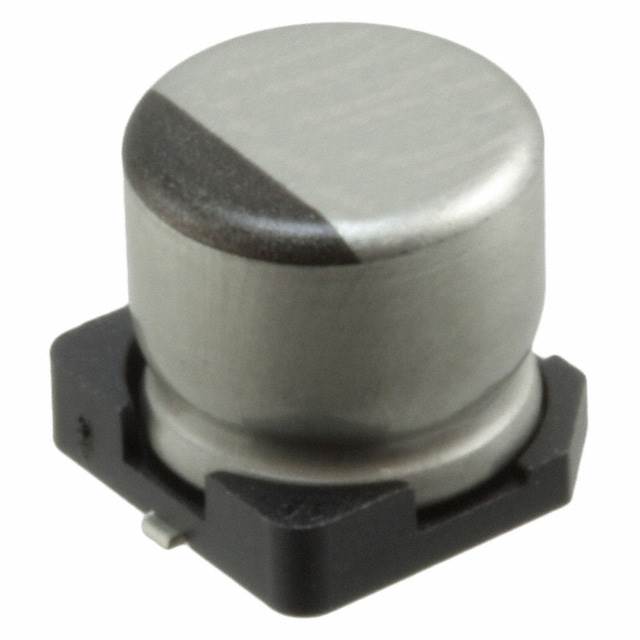

UWD1C101MCL1GS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UWD1C101MCL1GS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UWD1C101MCL1GS
Manufacturer	Nichicon
Description	CAP ALUM 100UF 20% 16V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 247649 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs
Reference Price (In US Dollars)	$0.27	$0.19	$0.125	$0.093

Product parameter
Data sheet

Product parameter

Part Number	UWD1C101MCL1GS	Manufacturer	Nichicon
Description	CAP ALUM 100UF 20% 16V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	247649 pcs	Data sheet	Chip Type Tape Spec Aluminum Electrolytic Land, Reflow UWD Series
Category	Capacitors	Voltage - Rated	16V
Tolerance	±20%	Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Size / Dimension	0.248" Dia (6.30mm)	Series	UWD
Ripple Current @ Low Frequency	115mA @ 120Hz	Ripple Current @ High Frequency	230mA @ 100kHz
Ratings	-	Polarization	-
Packaging	Cut Tape (CT)	Package / Case	Radial, Can - SMD
Other Names	493-6286-1	Operating Temperature	-55°C ~ 105°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	29 Weeks	Lifetime @ Temp.	2000 Hrs @ 105°C
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance	440 mOhms	Height - Seated (Max)	0.240" (6.10mm)
ESR (Equivalent Series Resistance)	-	Detailed Description	100µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Capacitance	100µF	Applications	General Purpose
