Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UUA1C101MCL1GS

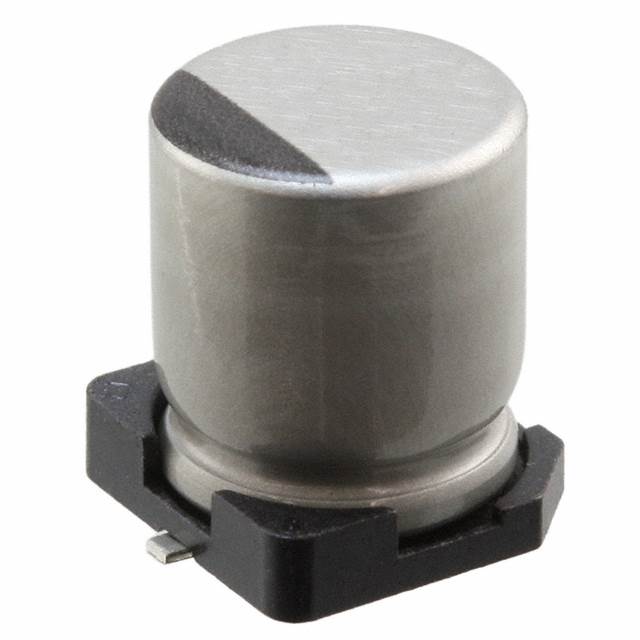

UUA1C101MCL1GS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UUA1C101MCL1GS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UUA1C101MCL1GS
Manufacturer	Nichicon
Description	CAP ALUM 100UF 20% 16V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	9000 pcs	22500 pcs	45000 pcs
~~In Stock~~ 443133 pcs
Reference Price (In US Dollars)	900 pcs	1800 pcs	2700 pcs	4500 pcs
	$0.058	$0.055	$0.052	$0.049
	$0.045	$0.045	$0.044

Product parameter
Data sheet

Product parameter

Part Number	UUA1C101MCL1GS	Manufacturer	Nichicon
Description	CAP ALUM 100UF 20% 16V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	443133 pcs	Data sheet	Chip Type Tape Spec Aluminum Electrolytic Land, Reflow UUA Series
Category	Capacitors	Voltage - Rated	16V
Tolerance	±20%	Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Size / Dimension	0.248" Dia (6.30mm)	Series	UUA
Ripple Current @ Low Frequency	81mA @ 120Hz	Ripple Current @ High Frequency	121.5mA @ 10kHz
Ratings	-	Polarization	Polar
Packaging	Tape & Reel (TR)	Package / Case	Radial, Can - SMD
Other Names	493-6447-2 UUA1C101MCL1GS-ND	Operating Temperature	-55°C ~ 105°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	27 Weeks	Lifetime @ Temp.	3000 Hrs @ 105°C
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.315" (8.00mm)	ESR (Equivalent Series Resistance)	-
Detailed Description	100µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C	Capacitance	100µF
Applications	General Purpose
