Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UPW2A681MHH

UPW2A681MHH

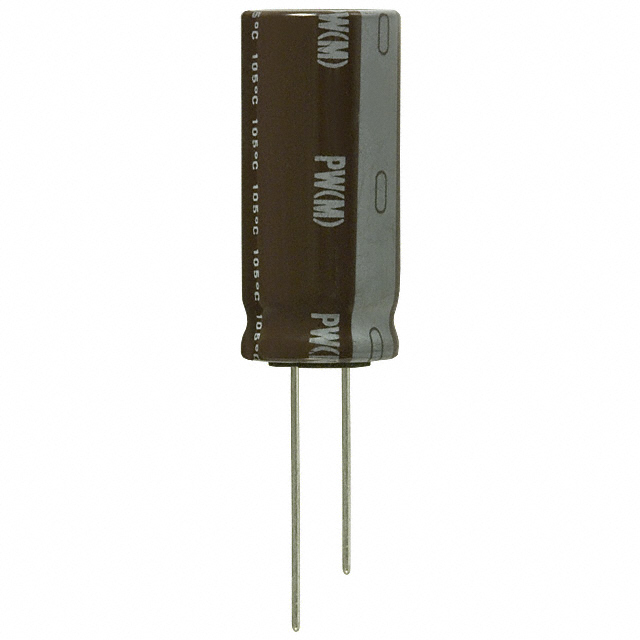

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UPW2A681MHH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UPW2A681MHH
Manufacturer	Nichicon
Description	CAP ALUM 680UF 20% 100V RADIAL
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 5171 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	UPW2A681MHH	Manufacturer	Nichicon
Description	CAP ALUM 680UF 20% 100V RADIAL	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	5171 pcs	Data sheet	UPW Series Miniature Type Taping Spec
Category	Capacitors	Voltage - Rated	100V
Tolerance	±20%	Surface Mount Land Size	-
Size / Dimension	0.630" Dia (16.00mm)	Series	UPW
Ripple Current @ Low Frequency	1.058A @ 120Hz	Ripple Current @ High Frequency	1.41A @ 100kHz
Ratings	-	Polarization	Polar
Packaging	Bulk	Package / Case	Radial, Can
Operating Temperature	-55°C ~ 105°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lifetime @ Temp.	8000 Hrs @ 105°C
Lead Spacing	0.295" (7.50mm)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Impedance	64 mOhms	Height - Seated (Max)	1.398" (35.50mm)
ESR (Equivalent Series Resistance)	-	Detailed Description	680µF 100V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Capacitance	680µF	Applications	General Purpose
