Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UPW0J680MDD1TP

UPW0J680MDD1TP

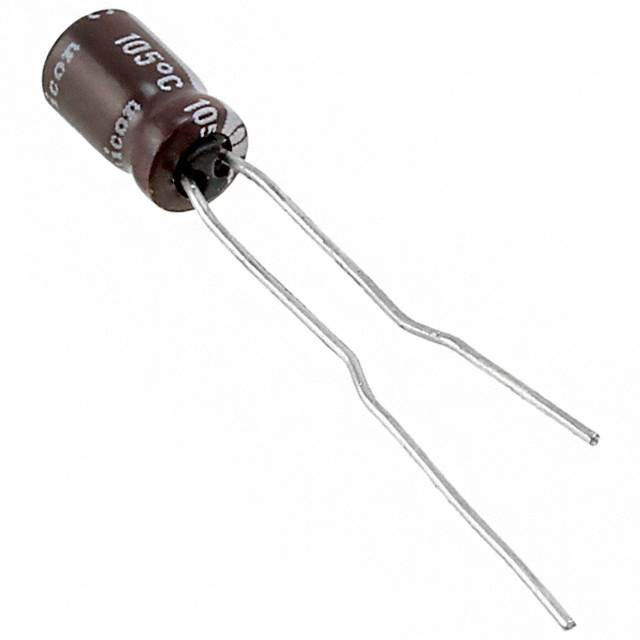

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UPW0J680MDD1TP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UPW0J680MDD1TP
Manufacturer	Nichicon
Description	CAP ALUM 68UF 20% 6.3V RADIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	14000 pcs	50000 pcs	100000 pcs
~~In Stock~~ 1939221 pcs
Reference Price (In US Dollars)	2000 pcs	4000 pcs	10000 pcs
	$0.02	$0.018	$0.017
	$0.016	$0.015	$0.013

Product parameter
Data sheet

Product parameter

Part Number	UPW0J680MDD1TP	Manufacturer	Nichicon
Description	CAP ALUM 68UF 20% 6.3V RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1939221 pcs	Data sheet	UPW Series Miniature Type Taping Spec
Category	Capacitors	Voltage - Rated	6.3V
Tolerance	±20%	Surface Mount Land Size	-
Size / Dimension	0.157" Dia (4.00mm)	Series	UPW
Ripple Current @ Low Frequency	78mA @ 120Hz	Ripple Current @ High Frequency	120mA @ 100kHz
Ratings	-	Polarization	Polar
Packaging	Tape & Box (TB)	Package / Case	Radial, Can
Other Names	493-11340-3	Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	18 Weeks	Lifetime @ Temp.	2000 Hrs @ 105°C
Lead Spacing	0.059" (1.50mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance	1.3 Ohms	Height - Seated (Max)	0.492" (12.50mm)
ESR (Equivalent Series Resistance)	-	Detailed Description	68µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Capacitance	68µF	Applications	General Purpose
