Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UPM1E181MPD1TD

UPM1E181MPD1TD

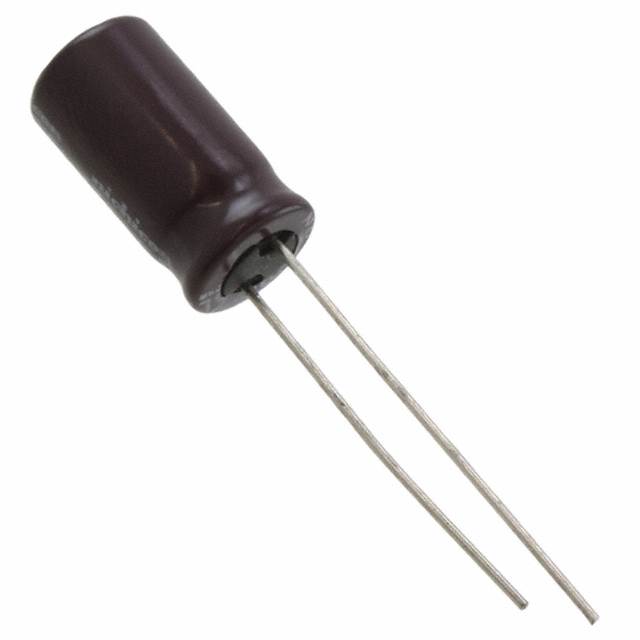

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UPM1E181MPD1TD with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UPM1E181MPD1TD
Manufacturer	Nichicon
Description	CAP ALUM 180UF 20% 25V RADIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	25000 pcs	50000 pcs	100000 pcs
~~In Stock~~ 690159 pcs
Reference Price (In US Dollars)	1000 pcs	2000 pcs	5000 pcs	10000 pcs
	$0.047	$0.044	$0.041	$0.038
	$0.037	$0.036	$0.035

Product parameter
Data sheet

Product parameter

Part Number	UPM1E181MPD1TD	Manufacturer	Nichicon
Description	CAP ALUM 180UF 20% 25V RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	690159 pcs	Data sheet	Miniature Type Taping Spec UPM Series Datasheet
Category	Capacitors	Voltage - Rated	25V
Tolerance	±20%	Surface Mount Land Size	-
Size / Dimension	0.315" Dia (8.00mm)	Series	UPM
Ripple Current @ Low Frequency	390mA @ 120Hz	Ripple Current @ High Frequency	550mA @ 10kHz
Ratings	-	Polarization	Polar
Packaging	Tape & Box (TB)	Package / Case	Radial, Can
Other Names	493-5236-3	Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	24 Weeks	Lifetime @ Temp.	3000 Hrs @ 105°C
Lead Spacing	0.138" (3.50mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance	140 mOhms	Height - Seated (Max)	0.650" (16.50mm)
ESR (Equivalent Series Resistance)	-	Detailed Description	180µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Capacitance	180µF	Applications	General Purpose
