Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UPM1A682MHD6

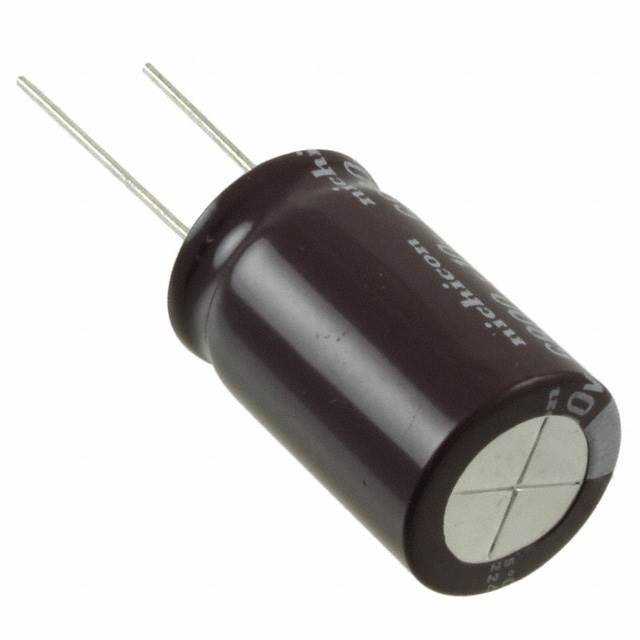

UPM1A682MHD6

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UPM1A682MHD6 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UPM1A682MHD6
Manufacturer	Nichicon
Description	CAP ALUM 6800UF 20% 10V RADIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	1000 pcs	2500 pcs	5000 pcs
~~In Stock~~ 80949 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs
	$0.752	$0.608	$0.464	$0.354
	$0.31	$0.299	$0.287

Product parameter
Data sheet

Product parameter

Part Number	UPM1A682MHD6	Manufacturer	Nichicon
Description	CAP ALUM 6800UF 20% 10V RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	80949 pcs	Data sheet	Miniature Type Taping Spec UPM Series Datasheet
Category	Capacitors	Voltage - Rated	10V
Tolerance	±20%	Surface Mount Land Size	-
Size / Dimension	0.709" Dia (18.00mm)	Series	UPM
Ripple Current @ Low Frequency	2.44A @ 120Hz	Ripple Current @ High Frequency	2.72A @ 10kHz
Ratings	-	Polarization	Polar
Packaging	Bulk	Package / Case	Radial, Can
Other Names	493-5593 UPM1A682MHD6-ND	Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	31 Weeks	Lifetime @ Temp.	5000 Hrs @ 105°C
Lead Spacing	0.295" (7.50mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance	22 mOhms	Height - Seated (Max)	1.319" (33.50mm)
ESR (Equivalent Series Resistance)	-	Detailed Description	6800µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Capacitance	6800µF	Applications	General Purpose
