Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UPJ1J681MHD6

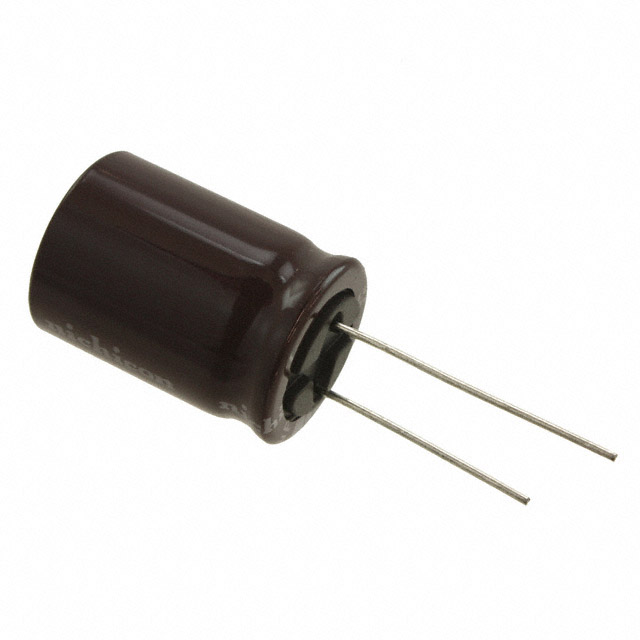

UPJ1J681MHD6

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UPJ1J681MHD6 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UPJ1J681MHD6
Manufacturer	Nichicon
Description	CAP ALUM 680UF 20% 63V RADIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	1000 pcs	2500 pcs	5000 pcs
~~In Stock~~ 114228 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs
	$0.591	$0.466	$0.35	$0.264
	$0.233	$0.218	$0.21

Product parameter
Data sheet

Product parameter

Part Number	UPJ1J681MHD6	Manufacturer	Nichicon
Description	CAP ALUM 680UF 20% 63V RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	114228 pcs	Data sheet	UPJ Series Miniature Type Taping Spec
Category	Capacitors	Voltage - Rated	63V
Tolerance	±20%	Surface Mount Land Size	-
Size / Dimension	0.709" Dia (18.00mm)	Series	UPJ
Ripple Current @ Low Frequency	1.61A @ 120Hz	Ripple Current @ High Frequency	1.94A @ 10kHz
Ratings	-	Polarization	Polar
Packaging	Bulk	Package / Case	Radial, Can
Operating Temperature	-55°C ~ 105°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	29 Weeks
Lifetime @ Temp.	5000 Hrs @ 105°C	Lead Spacing	0.295" (7.50mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Impedance	51 mOhms
Height - Seated (Max)	0.984" (25.00mm)	ESR (Equivalent Series Resistance)	-
Detailed Description	680µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C	Capacitance	680µF
Applications	General Purpose
