Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UDB1H220MHM1TN

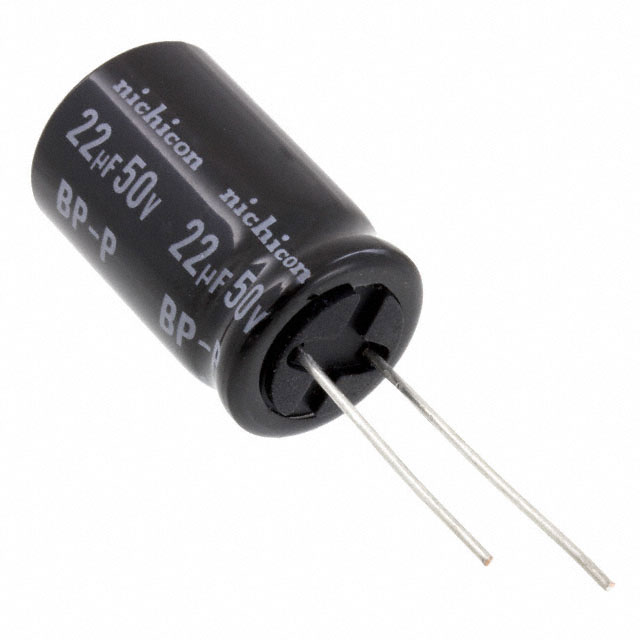

UDB1H220MHM1TN

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UDB1H220MHM1TN with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UDB1H220MHM1TN
Manufacturer	Nichicon
Description	CAP ALUM 22UF 20% 50V RADIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	2500 pcs	6250 pcs	12500 pcs
~~In Stock~~ 155434 pcs
Reference Price (In US Dollars)	250 pcs	500 pcs	750 pcs	1250 pcs
	$0.211	$0.18	$0.169	$0.158
	$0.148	$0.143	$0.137

Product parameter
Data sheet

Product parameter

Part Number	UDB1H220MHM1TN	Manufacturer	Nichicon
Description	CAP ALUM 22UF 20% 50V RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	155434 pcs	Data sheet	Miniature Type Taping Spec UDB Series Datasheet
Category	Capacitors	Voltage - Rated	50V
Tolerance	±20%	Surface Mount Land Size	-
Size / Dimension	0.630" Dia (16.00mm)	Series	UDB
Ripple Current @ Low Frequency	740mA @ 900Hz	Ratings	-
Polarization	Bi-Polar	Packaging	Tape & Box (TB)
Package / Case	Radial, Can	Other Names	493-13359-3
Operating Temperature	-40°C ~ 85°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	29 Weeks
Lifetime @ Temp.	1000 Hrs @ 85°C	Lead Spacing	0.295" (7.50mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	1.024" (26.00mm)
ESR (Equivalent Series Resistance)	-	Detailed Description	22µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C
Capacitance	22µF	Applications	Audio
