Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UCW1E221MNL1GS

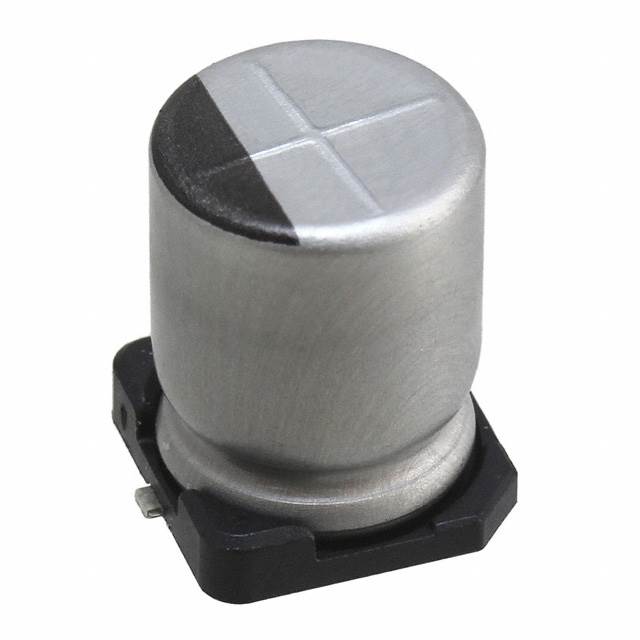

UCW1E221MNL1GS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UCW1E221MNL1GS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UCW1E221MNL1GS
Manufacturer	Nichicon
Description	CAP ALUM 220UF 20% 25V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 161428 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs
Reference Price (In US Dollars)	$0.271	$0.192	$0.127

Product parameter
Data sheet

Product parameter

Part Number	UCW1E221MNL1GS	Manufacturer	Nichicon
Description	CAP ALUM 220UF 20% 25V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	161428 pcs	Data sheet	Chip Type Tape Spec UCW Series Aluminum Electrolytic Land, Reflow
Category	Capacitors	Voltage - Rated	25V
Tolerance	±20%	Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Size / Dimension	0.315" Dia (8.00mm)	Series	UCW
Ripple Current @ Low Frequency	300mA @ 120Hz	Ripple Current @ High Frequency	600mA @ 100kHz
Ratings	-	Polarization	-
Packaging	Cut Tape (CT)	Package / Case	Radial, Can - SMD
Other Names	493-9420-1	Operating Temperature	-25°C ~ 105°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	28 Weeks	Lifetime @ Temp.	7000 Hrs @ 105°C
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance	220 mOhms	Height - Seated (Max)	0.394" (10.00mm)
ESR (Equivalent Series Resistance)	-	Detailed Description	220µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C
Capacitance	220µF	Applications	General Purpose
