Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UCM1E821MNL1GS

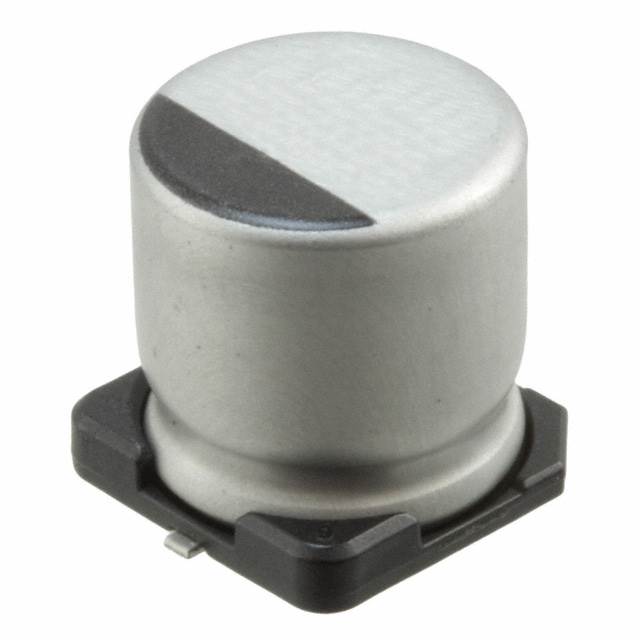

UCM1E821MNL1GS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UCM1E821MNL1GS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UCM1E821MNL1GS
Manufacturer	Nichicon
Description	CAP ALUM 820UF 20% 25V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 98413 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs
Reference Price (In US Dollars)	$0.375	$0.284	$0.203

Product parameter
Data sheet

Product parameter

Part Number	UCM1E821MNL1GS	Manufacturer	Nichicon
Description	CAP ALUM 820UF 20% 25V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	98413 pcs	Data sheet	Chip Type Tape Spec Aluminum Electrolytic Land, Reflow UCM Series
Category	Capacitors	Voltage - Rated	25V
Tolerance	±20%	Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Size / Dimension	0.394" Dia (10.00mm)	Series	UCM
Ripple Current @ Low Frequency	595mA @ 120Hz	Ripple Current @ High Frequency	1.19A @ 100kHz
Ratings	-	Polarization	Polar
Packaging	Original-Reel®	Package / Case	Radial, Can - SMD
Other Names	493-14532-6	Operating Temperature	-55°C ~ 105°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	28 Weeks	Lifetime @ Temp.	2000 Hrs @ 105°C
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance	60 mOhms	Height - Seated (Max)	0.413" (10.50mm)
ESR (Equivalent Series Resistance)	-	Detailed Description	820µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Capacitance	820µF	Applications	General Purpose
