Home > Products > Capacitors > Aluminum Electrolytic Capacitors > UCD1E222MNQ1MS

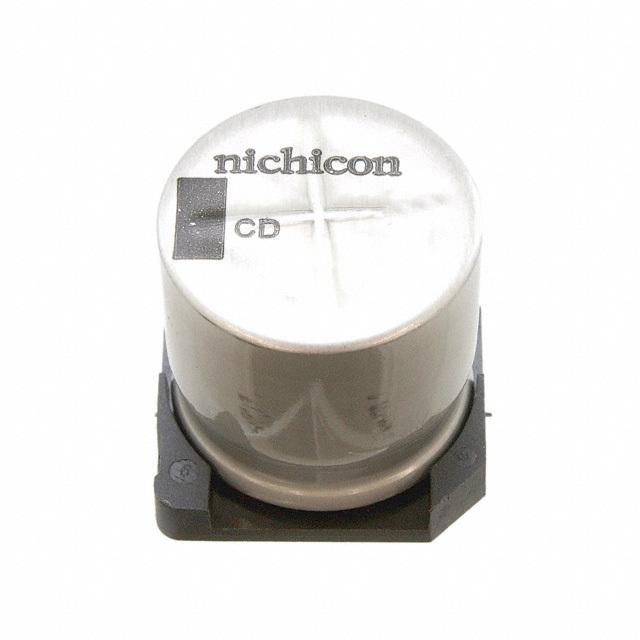

UCD1E222MNQ1MS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UCD1E222MNQ1MS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UCD1E222MNQ1MS
Manufacturer	Nichicon
Description	CAP ALUM 2200UF 20% 25V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 43156 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs
Reference Price (In US Dollars)	$0.943	$0.762

Product parameter
Data sheet

Product parameter

Part Number	UCD1E222MNQ1MS	Manufacturer	Nichicon
Description	CAP ALUM 2200UF 20% 25V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	43156 pcs	Data sheet	Chip Type Tape Spec Aluminum Electrolytic Land, Reflow UCD Series Datasheet
Category	Capacitors	Voltage - Rated	25V
Tolerance	±20%	Surface Mount Land Size	0.673" L x 0.673" W (17.10mm x 17.10mm)
Size / Dimension	0.630" Dia (16.00mm)	Series	UCD
Ripple Current @ Low Frequency	900mA @ 120Hz	Ripple Current @ High Frequency	1.8A @ 100kHz
Ratings	-	Polarization	Polar
Packaging	Original-Reel®	Package / Case	Radial, Can - SMD
Other Names	493-6381-6	Operating Temperature	-55°C ~ 105°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	29 Weeks	Lifetime @ Temp.	5000 Hrs @ 105°C
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance	35 mOhms	Height - Seated (Max)	0.689" (17.50mm)
ESR (Equivalent Series Resistance)	-	Detailed Description	2200µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Capacitance	2200µF	Applications	General Purpose
