Home > Products > Capacitors > Aluminum Electrolytic Capacitors > LLS2D561MELZ

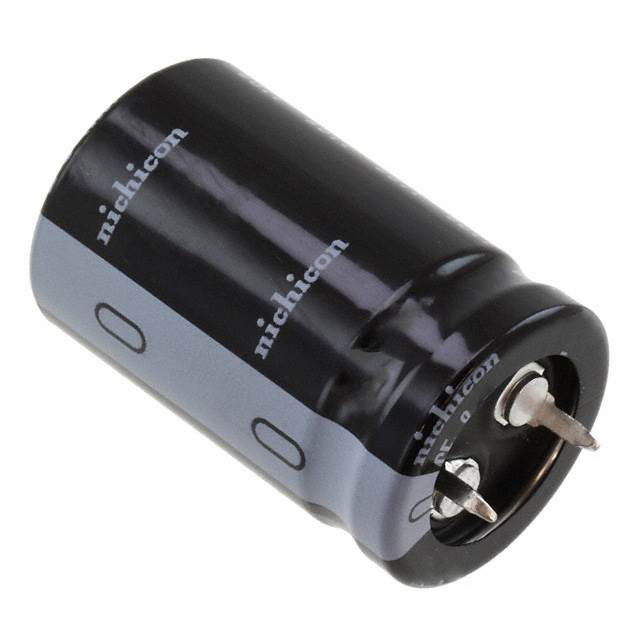

LLS2D561MELZ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LLS2D561MELZ with confidence from Components-World.HK, 1 Year Warranty

Dowload LLS2D561MELZ Details in PDF

Request a Quote

Part Number	LLS2D561MELZ
Manufacturer	Nichicon
Description	CAP ALUM 560UF 20% 200V SNAP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 53911 pcs
Reference Price (In US Dollars)	250 pcs
Reference Price (In US Dollars)	$0.67

Product parameter
Data sheet

Product parameter

Part Number	LLS2D561MELZ	Manufacturer	Nichicon
Description	CAP ALUM 560UF 20% 200V SNAP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	53911 pcs	Data sheet	LLS Series Snap-In Terminal, Terminal-Shape
Category	Capacitors	Voltage - Rated	200V
Tolerance	±20%	Surface Mount Land Size	-
Size / Dimension	0.866" Dia (22.00mm)	Series	LLS
Ripple Current @ Low Frequency	2.18A @ 120Hz	Ripple Current @ High Frequency	3.27A @ 50kHz
Ratings	-	Polarization	Polar
Packaging	Bulk	Package / Case	Radial, Can - Snap-In
Other Names	493-2516	Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	31 Weeks	Lifetime @ Temp.	3000 Hrs @ 85°C
Lead Spacing	0.394" (10.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	1.378" (35.00mm)	ESR (Equivalent Series Resistance)	-
Detailed Description	560µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C	Capacitance	560µF
Applications	General Purpose
