Home > Products > Capacitors > Aluminum Electrolytic Capacitors > LGUW6560MELY

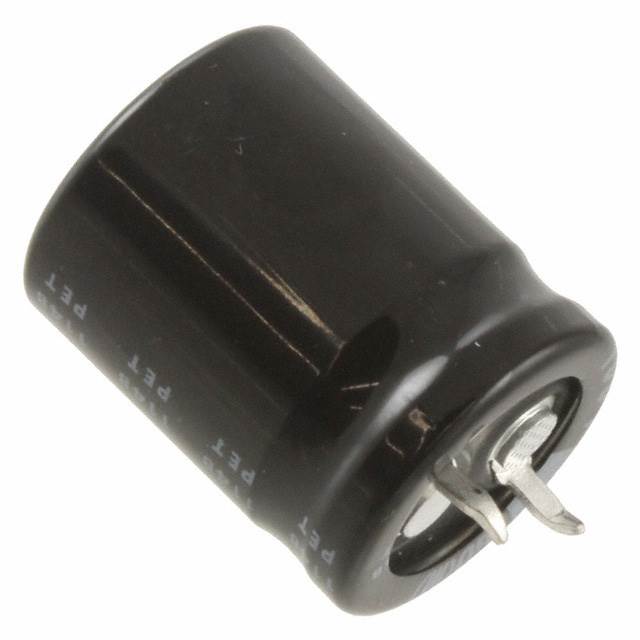

LGUW6560MELY

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LGUW6560MELY with confidence from Components-World.HK, 1 Year Warranty

Dowload LGUW6560MELY Details in PDF

Request a Quote

Part Number	LGUW6560MELY
Manufacturer	Nichicon
Description	CAP ALUM 56UF 20% 420V SNAP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	1000 pcs	2500 pcs	5000 pcs
~~In Stock~~ 88763 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs
	$1.156	$0.935	$0.714	$0.544
	$0.476	$0.459	$0.442

Product parameter
Data sheet

Product parameter

Part Number	LGUW6560MELY	Manufacturer	Nichicon
Description	CAP ALUM 56UF 20% 420V SNAP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	88763 pcs	Data sheet	LGU Series Snap-In Terminal, Terminal-Shape
Category	Capacitors	Voltage - Rated	420V
Tolerance	±20%	Surface Mount Land Size	-
Size / Dimension	0.787" Dia (20.00mm)	Series	LGU
Ripple Current @ Low Frequency	510mA @ 120Hz	Ripple Current @ High Frequency	729.3mA @ 50kHz
Ratings	-	Polarization	Polar
Packaging	Bulk	Package / Case	Radial, Can - Snap-In
Other Names	493-2812	Operating Temperature	-25°C ~ 105°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	31 Weeks	Lifetime @ Temp.	3000 Hrs @ 105°C
Lead Spacing	0.394" (10.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.984" (25.00mm)	ESR (Equivalent Series Resistance)	-
Detailed Description	56µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C	Capacitance	56µF
Applications	General Purpose
