Home > Products > Capacitors > Aluminum Electrolytic Capacitors > LGU1C682MELZ

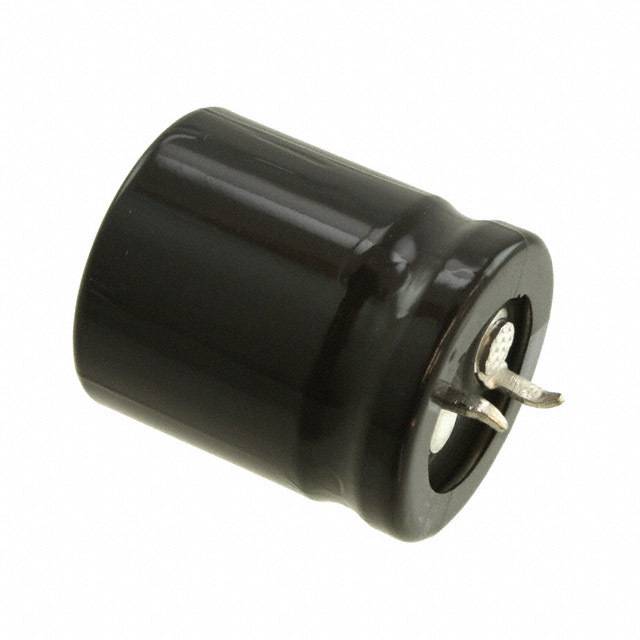

LGU1C682MELZ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LGU1C682MELZ with confidence from Components-World.HK, 1 Year Warranty

Dowload LGU1C682MELZ Details in PDF

Request a Quote

Part Number	LGU1C682MELZ
Manufacturer	Nichicon
Description	CAP ALUM 6800UF 20% 16V SNAP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	1000 pcs	2500 pcs	5000 pcs
~~In Stock~~ 92244 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs
	$1.037	$0.84	$0.641	$0.489
	$0.428	$0.412	$0.397

Product parameter
Data sheet

Product parameter

Part Number	LGU1C682MELZ	Manufacturer	Nichicon
Description	CAP ALUM 6800UF 20% 16V SNAP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	92244 pcs	Data sheet	LGU Series Snap-In Terminal, Terminal-Shape
Category	Capacitors	Voltage - Rated	16V
Tolerance	±20%	Surface Mount Land Size	-
Size / Dimension	0.866" Dia (22.00mm)	Series	LGU
Ripple Current @ Low Frequency	1.75A @ 120Hz	Ripple Current @ High Frequency	2.0125A @ 50kHz
Ratings	-	Polarization	Polar
Packaging	Bulk	Package / Case	Radial, Can - Snap-In
Other Names	493-7141 LGU1C682MELZ-ND	Operating Temperature	-40°C ~ 105°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	31 Weeks	Lifetime @ Temp.	3000 Hrs @ 105°C
Lead Spacing	0.394" (10.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	1.063" (27.00mm)	ESR (Equivalent Series Resistance)	-
Detailed Description	6800µF 16V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C	Capacitance	6800µF
Applications	General Purpose
