PSMN7R5-30YLDX

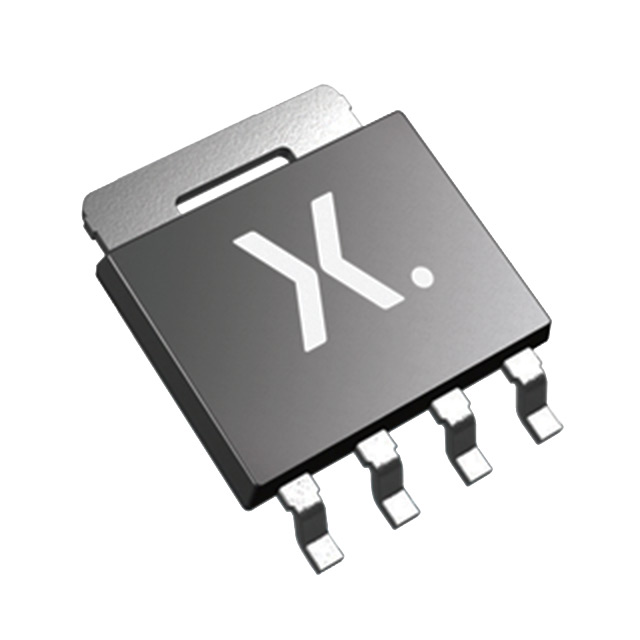

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PSMN7R5-30YLDX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PSMN7R5-30YLDX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PSMN7R5-30YLDX |
|---|---|
| Manufacturer | Nexperia |
| Description | MOSFET N-CH 30V 51A LFPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | ||||
|---|---|---|---|---|---|
| $0.083 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PSMN7R5-30YLDX | Manufacturer | Nexperia |
|---|---|---|---|
| Description | MOSFET N-CH 30V 51A LFPAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 276836 pcs | Data sheet | PSMN7R5-30YLD |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.2V @ 1mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | LFPAK56, Power-SO8 | Series | - |
| Rds On (Max) @ Id, Vgs | 7.5 mOhm @ 15A, 10V | Power Dissipation (Max) | 34W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | SC-100, SOT-669, 4-LFPAK |
| Other Names | 1727-1795-2 568-11378-2 568-11378-2-ND 934067967115 |
Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 655pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 11.3nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | N-Channel 30V 51A (Tj) 34W (Tc) Surface Mount LFPAK56, Power-SO8 |
| Current - Continuous Drain (Id) @ 25°C | 51A (Tj) |
