PSMN6R4-30MLDX

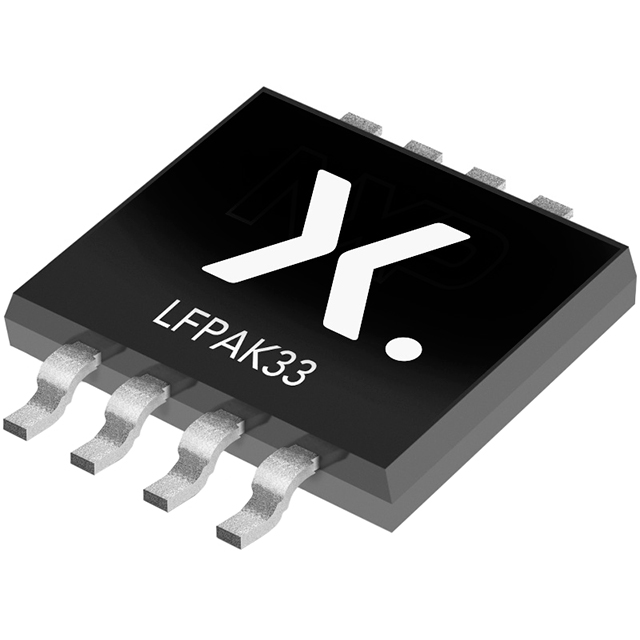

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PSMN6R4-30MLDX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PSMN6R4-30MLDX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PSMN6R4-30MLDX |
|---|---|
| Manufacturer | Nexperia |
| Description | MOSFET N-CH 30V MLFP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.256 | $0.214 | $0.161 | $0.118 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PSMN6R4-30MLDX | Manufacturer | Nexperia |
|---|---|---|---|
| Description | MOSFET N-CH 30V MLFP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 167609 pcs | Data sheet | PSMN6R4-30MLD |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.2V @ 1mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | LFPAK33 | Series | - |
| Rds On (Max) @ Id, Vgs | 6.3 mOhm @ 15A, 10V | Power Dissipation (Max) | 51W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | SOT-1210, 8-LFPAK33 (5-Lead) |
| Other Names | 1727-2219-1 568-12473-1 568-12473-1-ND |
Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 832pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 13.7nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | N-Channel 30V 66A (Tc) 51W (Tc) Surface Mount LFPAK33 |
| Current - Continuous Drain (Id) @ 25°C | 66A (Tc) |
