PMV65UNER

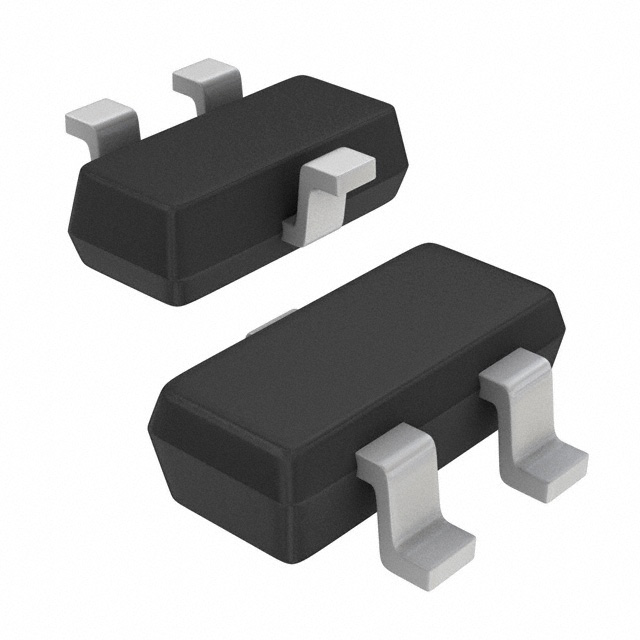

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PMV65UNER with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PMV65UNER with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PMV65UNER |
|---|---|
| Manufacturer | Nexperia |
| Description | MOSFET N-CH 20V 2.8A TO236AB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.214 | $0.154 | $0.091 | $0.051 | $0.039 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PMV65UNER | Manufacturer | Nexperia |
|---|---|---|---|
| Description | MOSFET N-CH 20V 2.8A TO236AB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 610639 pcs | Data sheet | PMV65UNE |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±8V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-236AB | Series | - |
| Rds On (Max) @ Id, Vgs | 73 mOhm @ 2.8A, 4.5V | Power Dissipation (Max) | 490mW (Ta) |
| Packaging | Cut Tape (CT) | Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Other Names | 1727-2707-1 568-13226-1 568-13226-1-ND |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 291pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 6nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | N-Channel 20V 2.8A (Ta) 490mW (Ta) Surface Mount TO-236AB |
| Current - Continuous Drain (Id) @ 25°C | 2.8A (Ta) |
