PMPB215ENEAX

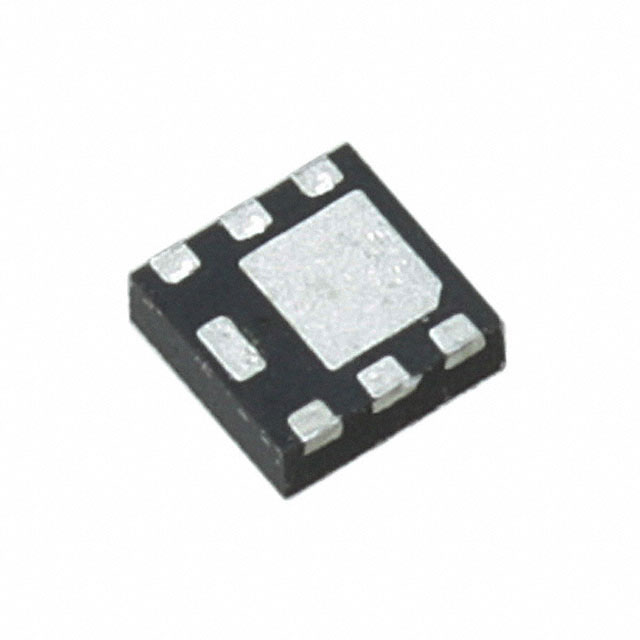

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PMPB215ENEAX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PMPB215ENEAX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PMPB215ENEAX |
|---|---|
| Manufacturer | Nexperia |
| Description | MOSFET N-CH 80V 1.9A SOT1220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.287 | $0.243 | $0.182 | $0.133 | $0.103 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PMPB215ENEAX | Manufacturer | Nexperia |
|---|---|---|---|
| Description | MOSFET N-CH 80V 1.9A SOT1220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 221073 pcs | Data sheet | PMPB215ENEA |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.7V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | DFN2020MD-6 | Series | Automotive, AEC-Q101 |
| Rds On (Max) @ Id, Vgs | 230 mOhm @ 1.9A, 10V | Power Dissipation (Max) | 1.6W (Ta), 15.6W (Tc) |
| Packaging | Original-Reel® | Package / Case | 6-UDFN Exposed Pad |
| Other Names | 1727-8340-6 | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 26 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 215pF @ 40V | Gate Charge (Qg) (Max) @ Vgs | 7.2nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 80V |
| Detailed Description | N-Channel 80V 1.9A (Ta) 1.6W (Ta), 15.6W (Tc) Surface Mount DFN2020MD-6 | Current - Continuous Drain (Id) @ 25°C | 1.9A (Ta) |
