Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > PMEG4020EPK,315

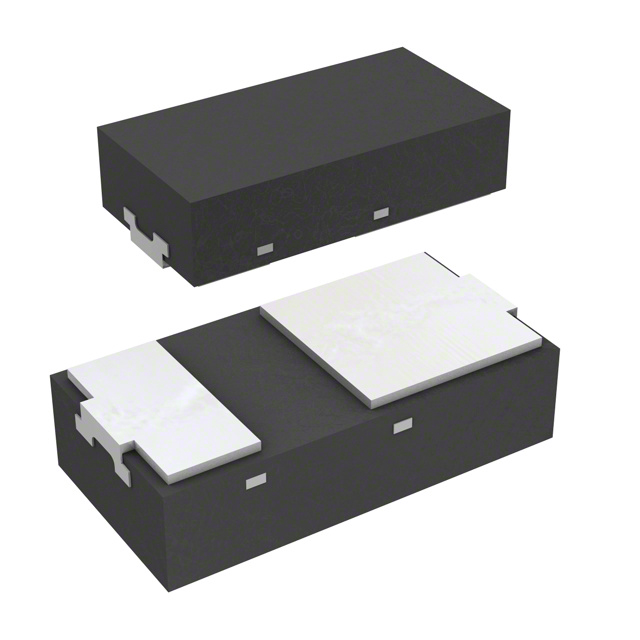

PMEG4020EPK,315

PMEG4020EPK,315

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PMEG4020EPK,315 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PMEG4020EPK,315
Manufacturer	Nexperia
Description	DIODE SCHOTTKY 40V 2A 2DFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 521033 pcs
Reference Price (In US Dollars)	8000 pcs	16000 pcs	24000 pcs
Reference Price (In US Dollars)	$0.051	$0.048	$0.044

Product parameter
Data sheet

Product parameter

Part Number	PMEG4020EPK,315	Manufacturer	Nexperia
Description	DIODE SCHOTTKY 40V 2A 2DFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	521033 pcs	Data sheet	PMEG4020EPK
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	660mV @ 2A
Voltage - DC Reverse (Vr) (Max)	40V	Supplier Device Package	DFN1608D-2
Speed	Fast Recovery = 200mA (Io)	Series	-
Reverse Recovery Time (trr)	4ns	Packaging	Tape & Reel (TR)
Package / Case	2-XDFN	Other Names	1727-1343-2 568-10776-2 568-10776-2-ND 934066738315 PMEG4020EPK,315-ND
Operating Temperature - Junction	150°C (Max)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Detailed Description	Diode Schottky 40V 2A Surface Mount DFN1608D-2
Current - Reverse Leakage @ Vr	5µA @ 10V	Current - Average Rectified (Io)	2A
Capacitance @ Vr, F	90pF @ 1V, 1MHz	Base Part Number	PMEG4020
