PH1330AL,115

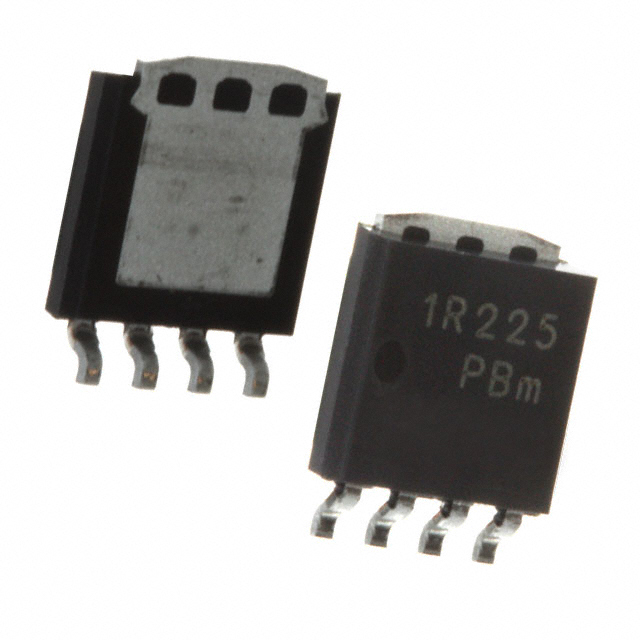

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PH1330AL,115 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PH1330AL,115 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PH1330AL,115 |
|---|---|
| Manufacturer | Nexperia |
| Description | MOSFET N-CH 30V 100A LFPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | PH1330AL,115 | Manufacturer | Nexperia |
|---|---|---|---|
| Description | MOSFET N-CH 30V 100A LFPAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5469 pcs | Data sheet | |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.15V @ 1mA |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | LFPAK56, Power-SO8 |
| Series | TrenchMOS™ | Rds On (Max) @ Id, Vgs | 1.3 mOhm @ 15A, 10V |
| Power Dissipation (Max) | - | Packaging | Tape & Reel (TR) |
| Package / Case | SOT-1023, 4-LFPAK | Other Names | 934064142115 |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 6227pF @ 12V | Gate Charge (Qg) (Max) @ Vgs | 100nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | N-Channel 30V 100A (Tc) Surface Mount LFPAK56, Power-SO8 |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
