Home > Products > Circuit Protection > TVS - Diodes > PESD1USB3SZ

PESD1USB3SZ

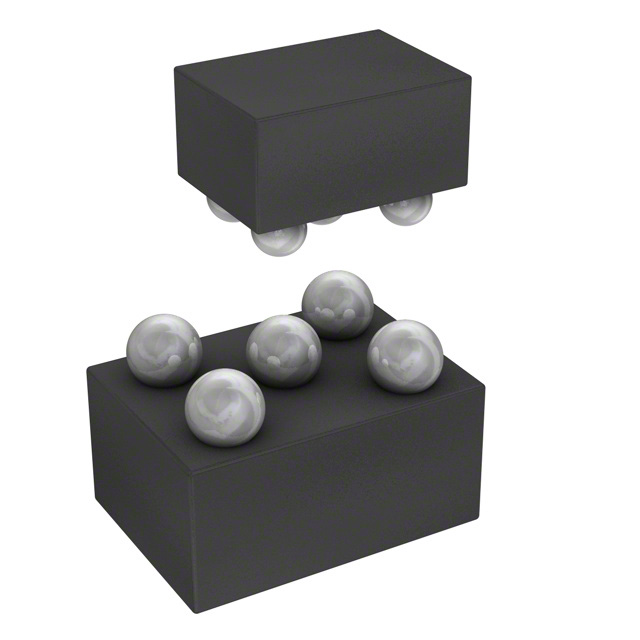

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PESD1USB3SZ with confidence from Components-World.HK, 1 Year Warranty

Dowload PESD1USB3SZ Details in PDF

Request a Quote

Part Number	PESD1USB3SZ
Manufacturer	Nexperia
Description	TVS DIODE 5.5V 5WLCSP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 606923 pcs
Reference Price (In US Dollars)	4500 pcs	9000 pcs	13500 pcs	31500 pcs
Reference Price (In US Dollars)	$0.045	$0.043	$0.04	$0.037

Product parameter
Data sheet

Product parameter

Part Number	PESD1USB3SZ	Manufacturer	Nexperia
Description	TVS DIODE 5.5V 5WLCSP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	606923 pcs	Data sheet	PESDxUSB3S
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Clamping (Max) @ Ipp	-	Voltage - Breakdown (Min)	6V
Unidirectional Channels	2	Type	Zener
Supplier Device Package	5-WLCSP	Series	-
Power Line Protection	No	Power - Peak Pulse	-
Packaging	Tape & Reel (TR)	Package / Case	5-UFBGA, WLCSP
Other Names	1727-2511-2 568-12944-2 568-12944-2-ND 934069683087	Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Current - Peak Pulse (10/1000µs)	7A (8/20µs)
Capacitance @ Frequency	-	Applications	HDMI
