Home > Products > Circuit Protection > TVS - Diodes > PESD18VF1BSFYL

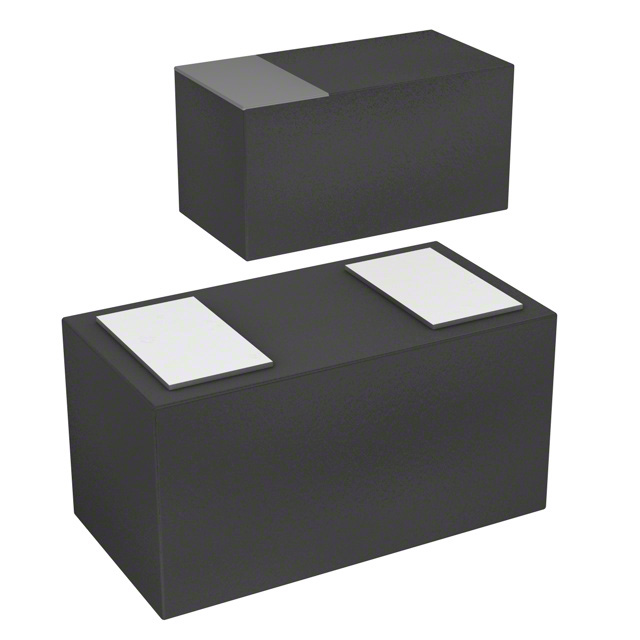

PESD18VF1BSFYL

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PESD18VF1BSFYL with confidence from Components-World.HK, 1 Year Warranty

Dowload PESD18VF1BSFYL Details in PDF

Request a Quote

Part Number	PESD18VF1BSFYL
Manufacturer	Nexperia
Description	TVS DIODE 18V 16V DSN0603-2
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 502808 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.142	$0.117	$0.079	$0.06	$0.045

Product parameter
Data sheet

Product parameter

Part Number	PESD18VF1BSFYL	Manufacturer	Nexperia
Description	TVS DIODE 18V 16V DSN0603-2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	502808 pcs	Data sheet	PESD18VF1BSF
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	18V (Max)
Voltage - Clamping (Max) @ Ipp	16V	Voltage - Breakdown (Min)	19V
Type	Zener	Supplier Device Package	DSN0603-2
Series	-	Power Line Protection	No
Power - Peak Pulse	-	Packaging	Cut Tape (CT)
Package / Case	0201 (0603 Metric)	Other Names	1727-2606-1 568-13062-1 568-13062-1-ND 568-13065-1 568-13065-1-ND
Operating Temperature	-40°C ~ 125°C (TA)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Current - Peak Pulse (10/1000µs)	1A (8/20µs)
Capacitance @ Frequency	0.28pF @ 1MHz	Bidirectional Channels	1
Applications	General Purpose
