PESD15VS1UB,115

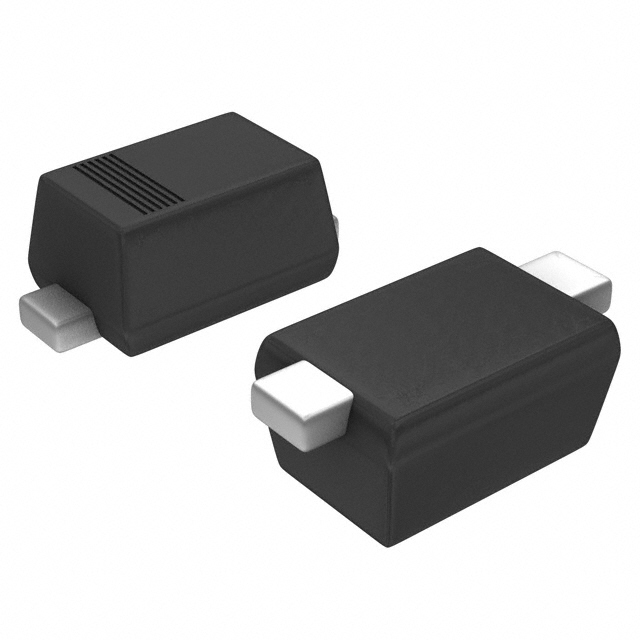

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PESD15VS1UB,115 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PESD15VS1UB,115 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PESD15VS1UB,115 |
|---|---|
| Manufacturer | Nexperia |
| Description | TVS DIODE 15V 40V SOD523 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.179 | $0.134 | $0.076 | $0.05 | $0.039 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PESD15VS1UB,115 | Manufacturer | Nexperia |
|---|---|---|---|
| Description | TVS DIODE 15V 40V SOD523 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 589864 pcs | Data sheet | SOD523 Packing InformationPESDzzzS1UB Series |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 15V (Max) |
| Voltage - Clamping (Max) @ Ipp | 40V | Voltage - Breakdown (Min) | 17.6V |
| Unidirectional Channels | 1 | Type | Zener |
| Supplier Device Package | SOD-523 | Series | - |
| Power Line Protection | No | Power - Peak Pulse | 160W |
| Packaging | Original-Reel® | Package / Case | SC-79, SOD-523 |
| Other Names | 1727-5370-6 568-6811-6 568-6811-6-ND |
Operating Temperature | -65°C ~ 150°C (TA) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Capacitance @ Frequency | 32pF @ 1MHz | Base Part Number | PESD*S1U |
| Applications | General Purpose |
