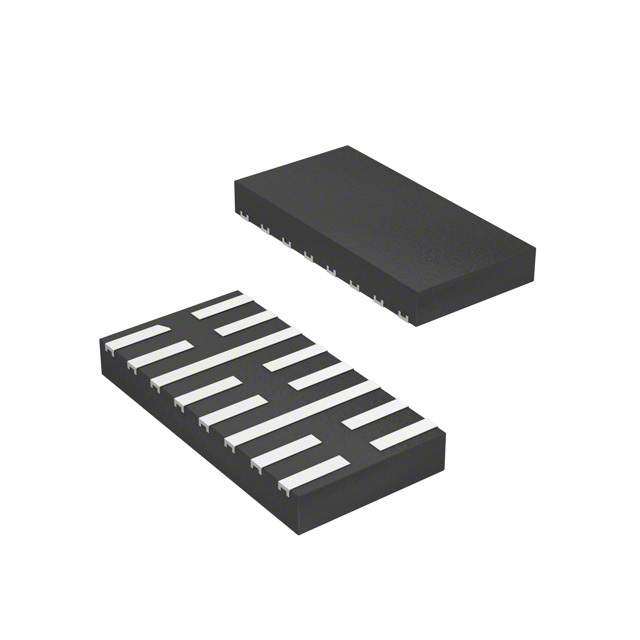

PCMF3DFN1X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PCMF3DFN1X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PCMF3DFN1X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PCMF3DFN1X |
|---|---|
| Manufacturer | Nexperia |
| Description | COMMON MODE CHOKE 6LN SMD ESD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PCMF3DFN1X | Manufacturer | Nexperia |
|---|---|---|---|
| Description | COMMON MODE CHOKE 6LN SMD ESD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4633 pcs | Data sheet | PCMF2DFN1;PCMF3DFN1 |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.157" L x 0.079" W (4.00mm x 2.00mm) |
| Series | PCM | Ratings | - |
| Packaging | Original-Reel® | Package / Case | 14-XFDFN |
| Other Names | 1727-1825-6 568-11460-6 568-11460-6-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Lines | 6 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 0.020" (0.50mm) | Filter Type | Signal Line |
| Features | ESD | Detailed Description | 6 Line Common Mode Choke Surface Mount DCR 5 Ohm (Typ) |
| DC Resistance (DCR) (Max) | 5 Ohm (Typ) | Current Rating (Max) | - |
| Approvals | - |
