BUK7J1R4-40HX

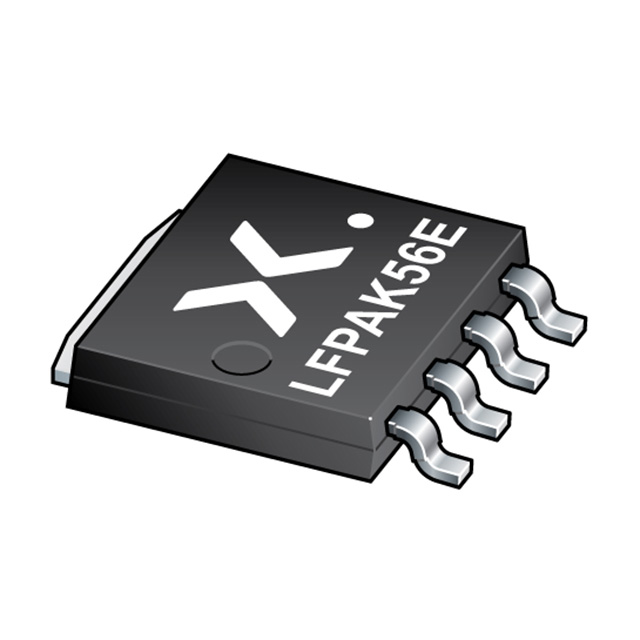

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BUK7J1R4-40HX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BUK7J1R4-40HX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BUK7J1R4-40HX |
|---|---|
| Manufacturer | Nexperia |
| Description | MOSFET N-CH 40V 120A LFPAK56 |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.892 | $0.805 | $0.647 | $0.503 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | BUK7J1R4-40HX | Manufacturer | Nexperia |
|---|---|---|---|
| Description | MOSFET N-CH 40V 120A LFPAK56 | Lead Free Status / RoHS Status | |
| Quantity Available | 63213 pcs | Data sheet | BUK7J1R4-40H |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3.6V @ 1mA |
| Vgs (Max) | +20V, -10V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | LFPAK56, Power-SO8 | Series | Automotive, AEC-Q101 |
| Rds On (Max) @ Id, Vgs | 1.4 mOhm @ 25A, 10V | Power Dissipation (Max) | 395W (Ta) |
| Packaging | Cut Tape (CT) | Package / Case | SOT-1023, 4-LFPAK |
| Other Names | 1727-7419-1 | Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Input Capacitance (Ciss) (Max) @ Vds | 8155pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 126nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 40V |
| Detailed Description | N-Channel 40V 120A (Ta) 395W (Ta) Surface Mount LFPAK56, Power-SO8 | Current - Continuous Drain (Id) @ 25°C | 120A (Ta) |
