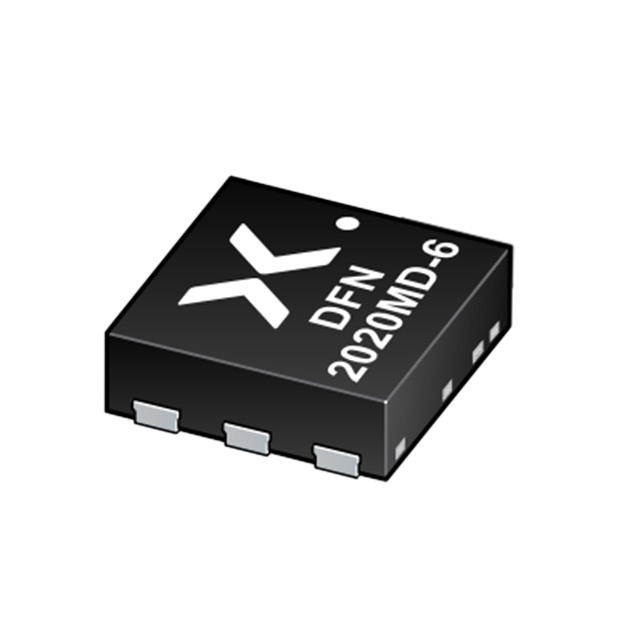

BUK6D23-40EX
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BUK6D23-40EX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BUK6D23-40EX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BUK6D23-40EX |
|---|---|
| Manufacturer | Nexperia |
| Description | BUK6D23-40E/SOT1220/SOT1220 |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.076 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | BUK6D23-40EX | Manufacturer | Nexperia |
|---|---|---|---|
| Description | BUK6D23-40E/SOT1220/SOT1220 | Lead Free Status / RoHS Status | |
| Quantity Available | 300289 pcs | Data sheet | BUK6D23-40E |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.7V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | DFN2020MD-6 | Series | Automotive, AEC-Q101, TrenchMOS™ |
| Rds On (Max) @ Id, Vgs | 23 mOhm @ 8A, 10V | Power Dissipation (Max) | 2.3W (Ta), 15W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 6-UDFN Exposed Pad |
| Other Names | 1727-8336-2 934660304115 BUK6D23-40EX-ND |
Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Input Capacitance (Ciss) (Max) @ Vds | 582pF @ 20V |
| Gate Charge (Qg) (Max) @ Vgs | 19nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 40V | Detailed Description | N-Channel 40V 8A (Ta), 19A (Tc) 2.3W (Ta), 15W (Tc) Surface Mount DFN2020MD-6 |
| Current - Continuous Drain (Id) @ 25°C | 8A (Ta), 19A (Tc) |
