Home > Products > Discrete Semiconductor Products > Transistors - Bipolar (BJT) - Single > BCP56-10TF

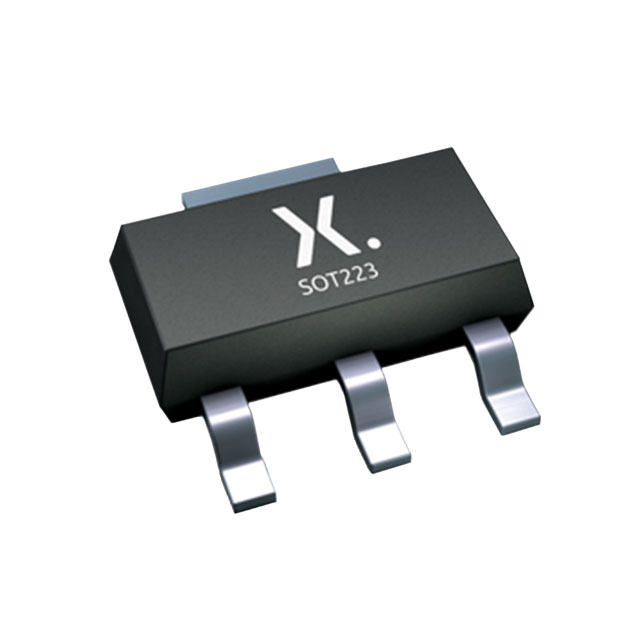

BCP56-10TF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BCP56-10TF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BCP56-10TF
Manufacturer	Nexperia
Description	TRANS NPN 80V 1A SOT223
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1080483 pcs
Reference Price (In US Dollars)	4000 pcs	8000 pcs	12000 pcs	28000 pcs
Reference Price (In US Dollars)	$0.031	$0.028	$0.025	$0.023

Product parameter
Data sheet

Product parameter

Part Number	BCP56-10TF	Manufacturer	Nexperia
Description	TRANS NPN 80V 1A SOT223	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1080483 pcs	Data sheet	BCP56T Series
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	80V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA	Transistor Type	NPN
Supplier Device Package	SOT-223	Series	Automotive, AEC-Q101
Power - Max	1.8W	Packaging	Tape & Reel (TR)
Package / Case	TO-261-4, TO-261AA	Other Names	1727-7615-2 934070118135 BCP56-10TF-ND
Operating Temperature	150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	20 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Transition	100MHz
Detailed Description	Bipolar (BJT) Transistor NPN 80V 1A 100MHz 1.8W Surface Mount SOT-223	DC Current Gain (hFE) (Min) @ Ic, Vce	63 @ 150mA, 2V
Current - Collector Cutoff (Max)	100nA (ICBO)	Current - Collector (Ic) (Max)	1A
