Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > BAV70SRAZ

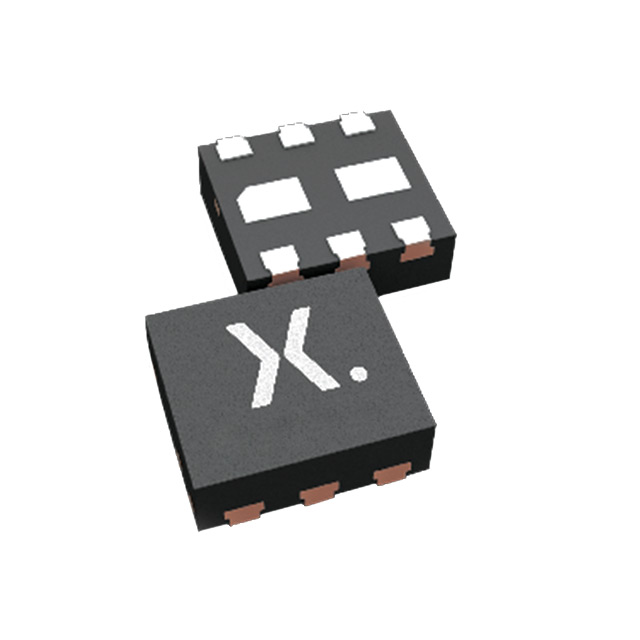

BAV70SRAZ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BAV70SRAZ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BAV70SRAZ
Manufacturer	Nexperia
Description	DIODE ARRAY GP 100V 355MA 6DFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1793615 pcs
Reference Price (In US Dollars)	5000 pcs	10000 pcs	25000 pcs	50000 pcs	125000 pcs
Reference Price (In US Dollars)	$0.02	$0.017	$0.016	$0.015	$0.013

Product parameter
Data sheet

Product parameter

Part Number	BAV70SRAZ	Manufacturer	Nexperia
Description	DIODE ARRAY GP 100V 355MA 6DFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1793615 pcs	Data sheet	BAV70SRA
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.25V @ 150mA
Voltage - DC Reverse (Vr) (Max)	100V	Supplier Device Package	DFN1412-6
Speed	Fast Recovery = 200mA (Io)	Series	Automotive, AEC-Q101
Reverse Recovery Time (trr)	4ns	Packaging	Tape & Reel (TR)
Package / Case	6-XFDFN Exposed Pad	Other Names	1727-7380-2 934070161147 BAV70SRAZ-ND
Operating Temperature - Junction	150°C (Max)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Standard
Diode Configuration	2 Pair Common Cathode	Detailed Description	Diode Array 2 Pair Common Cathode Standard 100V 355mA (DC) Surface Mount 6-XFDFN Exposed Pad
Current - Reverse Leakage @ Vr	500nA @ 80V	Current - Average Rectified (Io) (per Diode)	355mA (DC)
