Home > Products > Integrated Circuits (ICs) > Logic - Flip Flops > 74LVC823ABQ-Q100J

74LVC823ABQ-Q100J

74LVC823ABQ-Q100J

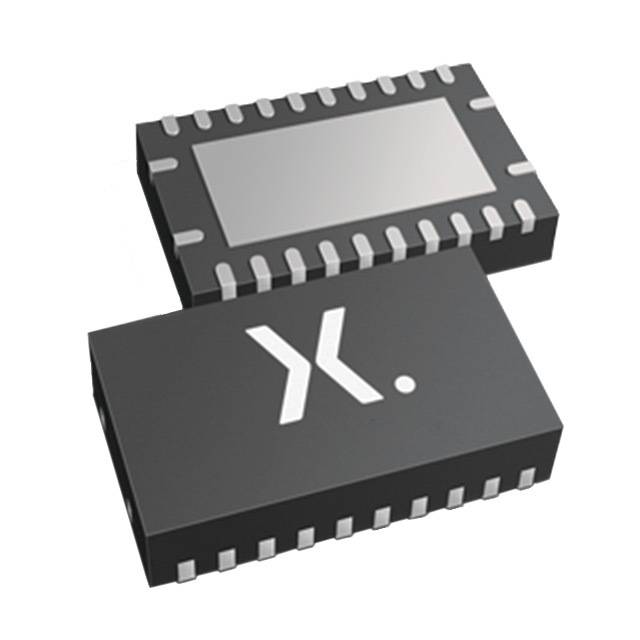

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 74LVC823ABQ-Q100J with confidence from Components-World.HK, 1 Year Warranty

Dowload 74LVC823ABQ-Q100J Details in PDF

Request a Quote

Part Number	74LVC823ABQ-Q100J
Manufacturer	Nexperia
Description	74LVC823ABQ-Q100/SOT815/DHVQFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 131372 pcs
Reference Price (In US Dollars)	3000 pcs	6000 pcs	15000 pcs
Reference Price (In US Dollars)	$0.166	$0.158	$0.152

Product parameter
Data sheet

Product parameter

Part Number	74LVC823ABQ-Q100J	Manufacturer	Nexperia
Description	74LVC823ABQ-Q100/SOT815/DHVQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	131372 pcs	Data sheet	74LVC823A-Q100
Category	Integrated Circuits (ICs)	Voltage - Supply	1.65 V ~ 3.6 V
Type	D-Type	Trigger Type	Positive Edge
Series	Automotive, AEC-Q100, 74LVC	Packaging	Tape & Reel (TR)
Package / Case	24-VFQFN Exposed Pad	Output Type	Tri-State, Non-Inverted
Other Names	1727-8093-2 74LVC823ABQ-Q100J-ND 935332776118	Operating Temperature	-40°C ~ 125°C (TA)
Number of Elements	1	Number of Bits per Element	9
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Propagation Delay @ V, Max CL	10ns @ 3.3V, 50pF	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance	5pF
Function	Master Reset	Current - Quiescent (Iq)	10µA
Current - Output High, Low	24mA, 24mA	Clock Frequency	200MHz
Base Part Number	74LVC823
