Home > Products > Optoelectronics > Display Modules - LCD, OLED, Graphic > NHD-12864AZ-NSW-BBW-TR

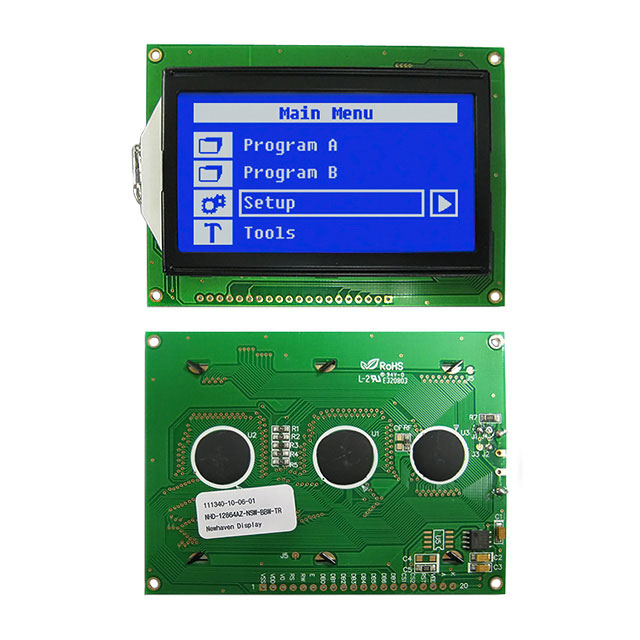

NHD-12864AZ-NSW-BBW-TR

NHD-12864AZ-NSW-BBW-TR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NHD-12864AZ-NSW-BBW-TR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NHD-12864AZ-NSW-BBW-TR
Manufacturer	Newhaven Display, Intl.
Description	LCD MOD GRAPH 128X64 WH TRANSM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 5178 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	50 pcs
	$9.502	$8.932	$8.362	$7.887
	$7.507	$7.127	$6.842

Product parameter
Data sheet

Product parameter

Part Number	NHD-12864AZ-NSW-BBW-TR	Manufacturer	Newhaven Display, Intl.
Description	LCD MOD GRAPH 128X64 WH TRANSM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5178 pcs	Data sheet	NHD-12864AZ-NSW-BBW User Guide
Category	Optoelectronics	Viewing Area	72.00mm W x 40.00mm H
Touchscreen	-	Series	-
Other Names	NHD12864AZNSWBBWTR	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Parallel, 8-Bit	Graphics Color	-
Dot Size	0.48mm W x 0.48mm H	Dot Pixels	128 x 64
Dot Pitch	0.52mm W x 0.52mm H	Display Type	STN - Super-Twisted Nematic
Display Mode	Transmissive	Diagonal Screen Size	-
Detailed Description	Graphic LCD Display Module Transmissive STN - Super-Twisted Nematic Parallel, 8-Bit 128 x 64	Backlight	LED - White
Background Color	-
