Home > Products > Optoelectronics > Display Modules - LCD, OLED Character and Numeric > NHD-0420CW-AR3

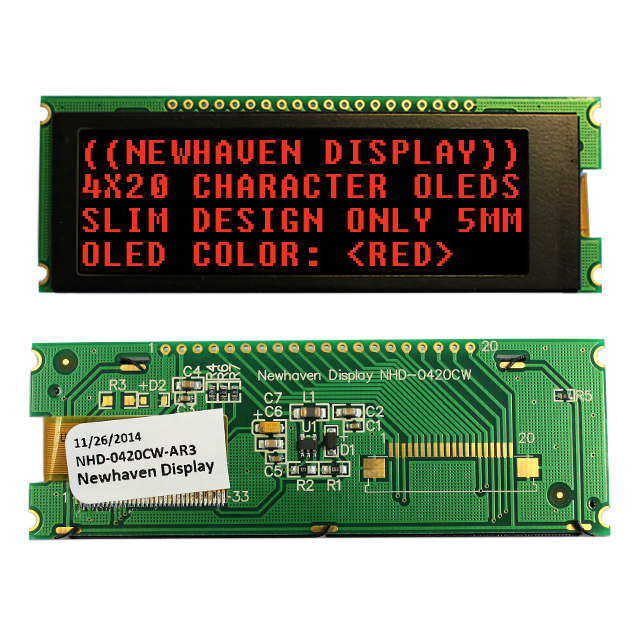

NHD-0420CW-AR3

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NHD-0420CW-AR3 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NHD-0420CW-AR3
Manufacturer	Newhaven Display, Intl.
Description	OLED MOD CHAR 4X20
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 3838 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs
	$10.695	$10.053	$9.412
	$8.877	$8.449	$8.392

Product parameter
Data sheet

Product parameter

Part Number	NHD-0420CW-AR3	Manufacturer	Newhaven Display, Intl.
Description	OLED MOD CHAR 4X20	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3838 pcs	Data sheet	NHD‐0420CW‐AR3
Category	Optoelectronics	Voltage - Supply	2.4 V ~ 5.5 V
Viewing Area	72.42mm L x 22.82mm W	Text Color	Red
Series	-	Outline L x W x H	92.00mm x 31.50mm x 2.50mm
Operating Temperature	-40°C ~ 85°C	Number of Characters	80
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	Parallel, 8-Bit, I²C, SPI
Dot Size	0.57mm W x 0.57mm H	Display Type	OLED
Display Mode	Passive	Display Format	20 x 4
Detailed Description	Character LCD Display Module Passive 5 x 8 Dots OLED Parallel, 8-Bit, I²C, SPI 92.00mm x 31.50mm x 2.50mm	Character Size	4.77mm H x 2.97mm W
Character Format	5 x 8 Dots	Backlight	-
Background Color	Black
