Home > Products > Optoelectronics > Display Modules - LCD, OLED Character and Numeric > NHD-0220CW-AB3

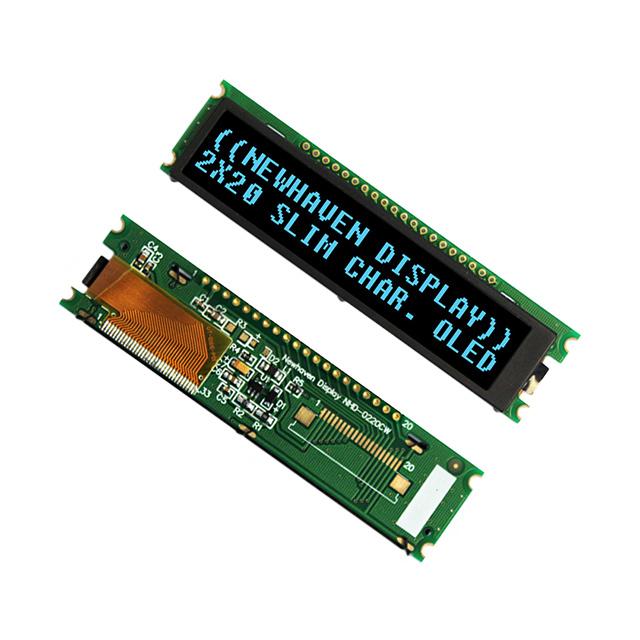

NHD-0220CW-AB3

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NHD-0220CW-AB3 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NHD-0220CW-AB3
Manufacturer	Newhaven Display, Intl.
Description	OLED MOD CHAR 2X20
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 5074 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	50 pcs
	$9.828	$9.238	$8.649	$8.157
	$7.764	$7.371	$7.076

Product parameter
Data sheet

Product parameter

Part Number	NHD-0220CW-AB3	Manufacturer	Newhaven Display, Intl.
Description	OLED MOD CHAR 2X20	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5074 pcs	Data sheet	NHD-0220CW-AB3
Category	Optoelectronics	Voltage - Supply	2.4 V ~ 5.5 V
Viewing Area	77.92mm L x 16.28mm W	Text Color	Blue
Series	-	Outline L x W x H	92.00mm x 23.30mm x 2.50mm
Operating Temperature	-40°C ~ 85°C	Number of Characters	40
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	Parallel, 8-Bit, I²C, SPI
Dot Size	0.62mm W x 0.67mm H	Display Type	OLED
Display Mode	Passive	Display Format	20 x 2
Detailed Description	Character LCD Display Module Passive 5 x 8 Dots OLED Parallel, 8-Bit, I²C, SPI 92.00mm x 23.30mm x 2.50mm	Character Size	5.57mm H x 3.22mm W
Character Format	5 x 8 Dots	Backlight	-
Background Color	Black
