Home > Products > RF/IF and RFID > RF Mixers > SA636BS,115

SA636BS,115

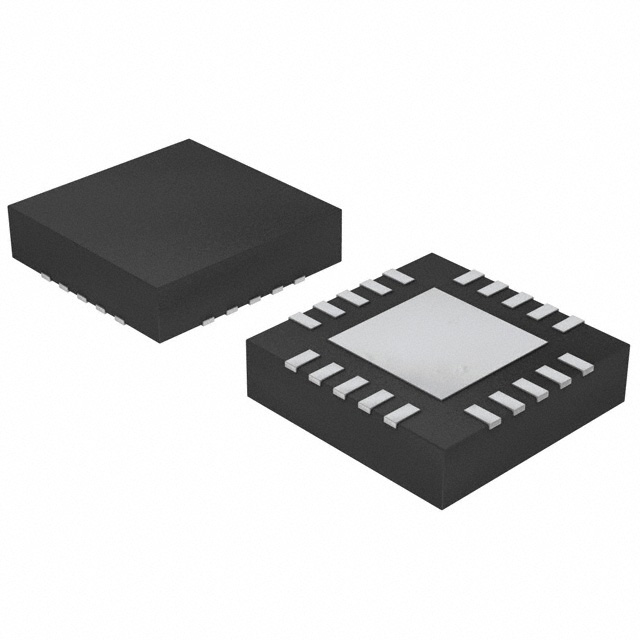

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SA636BS,115 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SA636BS,115
Manufacturer	NXP Semiconductors / Freescale
Description	IC MIXER 500MHZ UP CONV 20HVQFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 27784 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs
Reference Price (In US Dollars)	$1.941	$1.742	$1.427	$1.215

Product parameter
Data sheet

Product parameter

Part Number	SA636BS,115	Manufacturer	NXP Semiconductors / Freescale
Description	IC MIXER 500MHZ UP CONV 20HVQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27784 pcs	Data sheet	SA636
Category	RF/IF and RFID	Voltage - Supply	2.7 V ~ 5.5 V
Supplier Device Package	20-HVQFN (4x4)	Series	SA636
Secondary Attributes	Up Converter	RF Type	Cellular, ASK, DECT, FSK, UHF, VHF
Packaging	Cut Tape (CT)	Package / Case	20-VFQFN Exposed Pad
Other Names	568-10184-1	Number of Mixers	1
Noise Figure	12dB	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Gain	11dB
Frequency	500MHz	Detailed Description	RF Mixer IC Cellular, ASK, DECT, FSK, UHF, VHF Up Converter 500MHz 20-HVQFN (4x4)
Current - Supply	6.5mA
