PEMI8QFN/RT,132

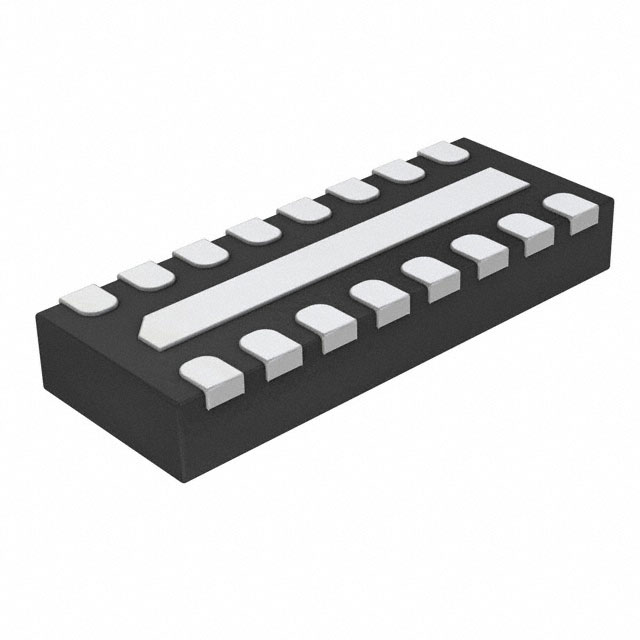

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PEMI8QFN/RT,132 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PEMI8QFN/RT,132 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PEMI8QFN/RT,132 |
|---|---|
| Manufacturer | NXP Semiconductors / Freescale |
| Description | FILTER RC(PI) 100 OHM/23PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PEMI8QFN/RT,132 | Manufacturer | NXP Semiconductors / Freescale |
|---|---|---|---|
| Description | FILTER RC(PI) 100 OHM/23PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5150 pcs | Data sheet | PEMIxQFN/2STD Family |
| Category | Filters | Voltage - Rated | - |
| Values | R = 100 Ohms, C = 23pF (Total) | Type | Low Pass |
| Technology | RC (Pi) | Size / Dimension | 0.130" L x 0.047" W (3.30mm x 1.20mm) |
| Series | PEMIxQFN | Resistance - Channel (Ohms) | 100 |
| Packaging | Tape & Reel (TR) | Package / Case | 16-XFDFN Exposed Pad |
| Other Names | 568-10720-2 934064933132 PEMI8QFN/RT,132-ND PEMI8QFNRT132 |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 8 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.020" (0.50mm) | Filter Order | 2nd |
| ESD Protection | Yes | Detailed Description | RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 100 Ohms, C = 23pF (Total) 16-XFDFN Exposed Pad |
| Center / Cutoff Frequency | - | Attenuation Value | 27dB @ 800MHz ~ 3GHz |
| Applications | LAN, PCS, WAN |
