Home > Products > Discrete Semiconductor Products > Transistors - Bipolar (BJT) - Single, Pre-Biased > PDTC123EEF,115

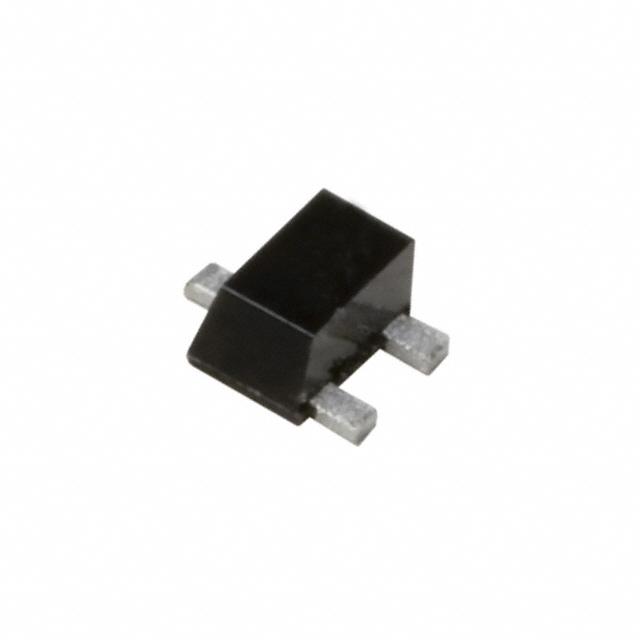

PDTC123EEF,115

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PDTC123EEF,115 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PDTC123EEF,115
Manufacturer	NXP Semiconductors / Freescale
Description	TRANS PREBIAS NPN 250MW SC89
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 6008 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	PDTC123EEF,115	Manufacturer	NXP Semiconductors / Freescale
Description	TRANS PREBIAS NPN 250MW SC89	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6008 pcs	Data sheet	PDTC123E Series
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	150mV @ 500µA, 10mA	Transistor Type	NPN - Pre-Biased
Supplier Device Package	SC-89	Series	-
Resistor - Emitter Base (R2)	2.2 kOhms	Resistor - Base (R1)	2.2 kOhms
Power - Max	250mW	Packaging	Cut Tape (CT)
Package / Case	SC-89, SOT-490	Other Names	568-2151-1 PDTC123EEF115
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50V 100mA 250mW Surface Mount SC-89
DC Current Gain (hFE) (Min) @ Ic, Vce	30 @ 20mA, 5V	Current - Collector Cutoff (Max)	1µA
Current - Collector (Ic) (Max)	100mA	Base Part Number	PDTC123
