Home > Products > Discrete Semiconductor Products > Transistors - Bipolar (BJT) - Single, Pre-Biased > PDTA115EE,115

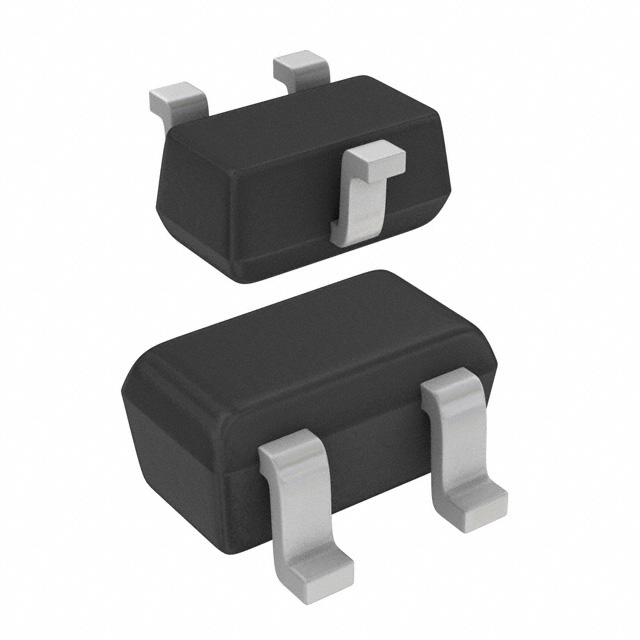

PDTA115EE,115

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PDTA115EE,115 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PDTA115EE,115
Manufacturer	NXP Semiconductors / Freescale
Description	TRANS PREBIAS PNP 150MW SC75
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5791 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	PDTA115EE,115	Manufacturer	NXP Semiconductors / Freescale
Description	TRANS PREBIAS PNP 150MW SC75	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5791 pcs	Data sheet	PDTA115E
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	150mV @ 250µA, 5mA	Transistor Type	PNP - Pre-Biased
Supplier Device Package	SC-75	Series	-
Resistor - Emitter Base (R2)	100 kOhms	Resistor - Base (R1)	100 kOhms
Power - Max	150mW	Packaging	Tape & Reel (TR)
Package / Case	SC-75, SOT-416	Other Names	568-2106-2 934058177115 PDTA115EE T/R
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	Pre-Biased Bipolar Transistor (BJT) PNP - Pre-Biased 50V 20mA 150mW Surface Mount SC-75
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 5mA, 5V	Current - Collector Cutoff (Max)	1µA
Current - Collector (Ic) (Max)	20mA	Base Part Number	PDTA115
