Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - Embedded - MCU, DSP > OM13069UL

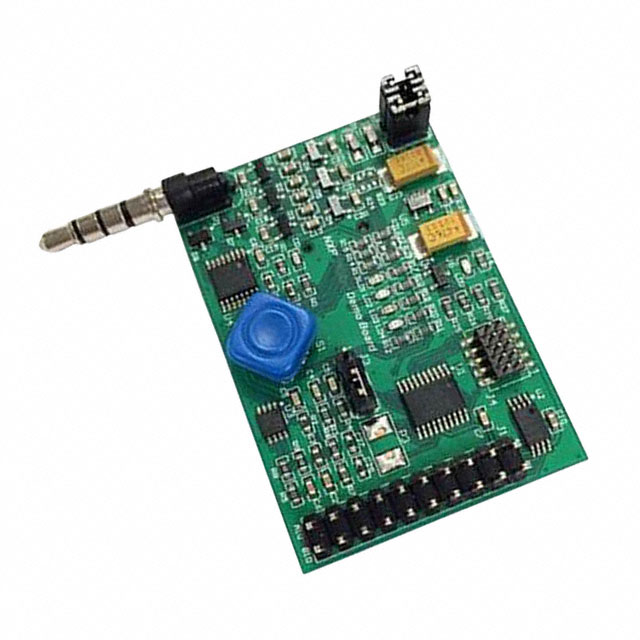

OM13069UL

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OM13069UL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	OM13069UL
Manufacturer	NXP Semiconductors / Freescale
Description	BOARD LPC800 QUICK-JACK
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4235 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$7.094

Product parameter
Data sheet

Product parameter

Part Number	OM13069UL	Manufacturer	NXP Semiconductors / Freescale
Description	BOARD LPC800 QUICK-JACK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4235 pcs	Data sheet	Smartphone Quick-Jack Solution Brochure LPC81x User Manual LPC81xM Datasheet
Category	Development Boards, Kits, Programmers	Type	MCU 32-Bit
Series	LPC800	Platform	Smartphone Quick-Jack Solution
Other Names	568-11461 935304258598 OM13069 OM13069,598	Operating System	-
Mounting Type	Fixed	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	For Use With/Related Products	LPC812
Detailed Description	LPC812 Smartphone Quick-Jack Solution LPC800 MCU 32-Bit ARM® Cortex®-M0+ Embedded Evaluation Board	Core Processor	ARM® Cortex®-M0+
Contents	Board(s)	Board Type	Evaluation Platform
