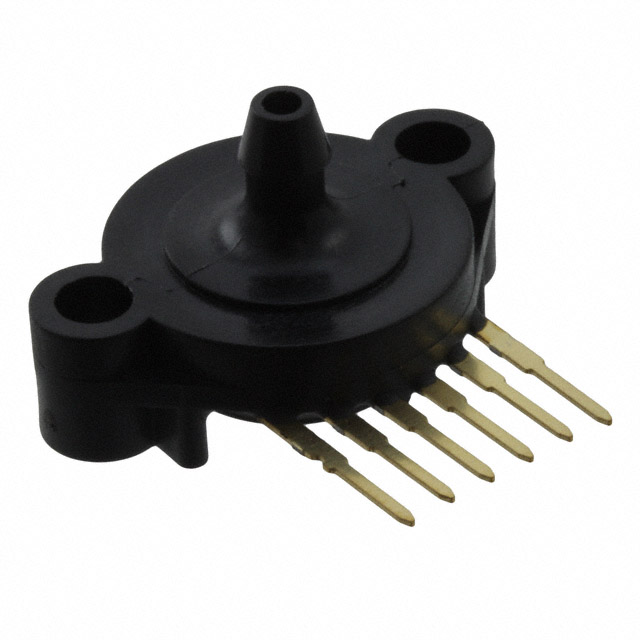

MPX5700ASX
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MPX5700ASX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MPX5700ASX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MPX5700ASX |
|---|---|
| Manufacturer | NXP Semiconductors / Freescale |
| Description | PRESSURE SENSOR ABS AXIAL 6-SIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $7.404 | $7.252 | $6.044 | $5.59 | ||
| 50 pcs | 100 pcs | 500 pcs | |||
| $5.439 | $4.684 | $4.382 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MPX5700ASX | Manufacturer | NXP Semiconductors / Freescale |
|---|---|---|---|
| Description | PRESSURE SENSOR ABS AXIAL 6-SIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8092 pcs | Data sheet | MPX5700 Series |
| Category | Sensors, Transducers | Voltage - Supply | 4.75 V ~ 5.25 V |
| Termination Style | PCB | Supplier Device Package | - |
| Series | MPX5700 | Pressure Type | Absolute |
| Port Style | Barbed | Port Size | Male - 0.19" (4.93mm) Tube |
| Package / Case | 6-SIP Module | Output Type | Analog Voltage |
| Output | 0.2 V ~ 4.7 V | Other Names | 935321172117 |
| Operating Temperature | -40°C ~ 125°C | Operating Pressure | 2.18 PSI ~ 101.53 PSI (15 kPa ~ 700 kPa) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Maximum Pressure | 406.11 PSI (2800 kPa) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Temperature Compensated | Detailed Description | Pressure Sensor 2.18 PSI ~ 101.53 PSI (15 kPa ~ 700 kPa) Absolute Male - 0.19" (4.93mm) Tube 0.2 V ~ 4.7 V 6-SIP Module |
| Accuracy | ±2.5% |
