MC33HB2001FK

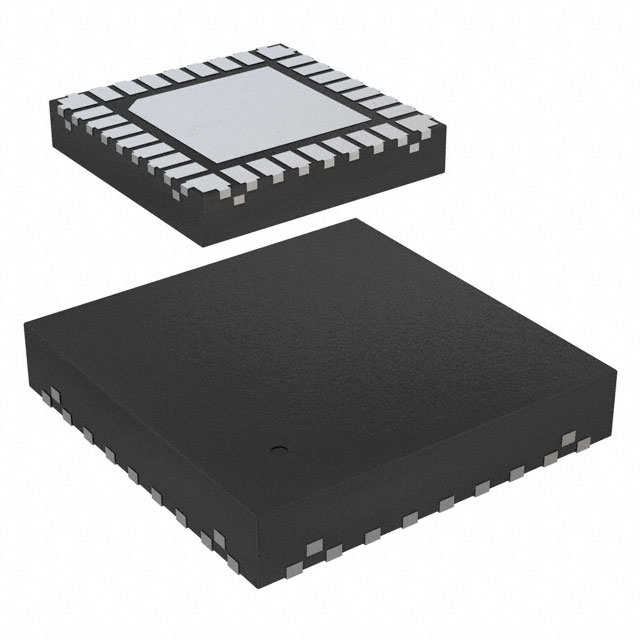

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MC33HB2001FK with confidence from Components-World.HK, 1 Year Warranty
Dowload MC33HB2001FK Details in PDFSee Product Specifications for product details.
Buy MC33HB2001FK with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MC33HB2001FK |
|---|---|
| Manufacturer | NXP Semiconductors / Freescale |
| Description | IC HALF-BRIDGE DRIVER SPI 32PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 260 pcs | 520 pcs | 1040 pcs |
|---|---|---|---|---|---|
| $2.757 | $2.491 | $1.97 | $1.796 | $1.564 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MC33HB2001FK | Manufacturer | NXP Semiconductors / Freescale |
|---|---|---|---|
| Description | IC HALF-BRIDGE DRIVER SPI 32PQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23664 pcs | Data sheet | Motor Driver Product SelectorMC33HB2001 Datasheet |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 5 V ~ 28 V |
| Voltage - Load | 5 V ~ 28 V | Technology | Power MOSFET |
| Supplier Device Package | 32-PQFN (8x8) | Series | - |
| Rds On (Typ) | 125 mOhm LS (Max), 125 mOhm HS (Max) | Packaging | Tray |
| Package / Case | 32-PowerQFN | Output Configuration | Half Bridge (2) |
| Other Names | 935315945557 | Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 20 Weeks | Load Type | Inductive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | SPI |
| Features | Slew Rate Controlled | Fault Protection | Over Temperature, Over Voltage, UVLO |
| Detailed Description | Half Bridge (2) Driver DC Motors, General Purpose Power MOSFET 32-PQFN (8x8) | Current - Peak Output | - |
| Current - Output / Channel | - | Applications | DC Motors, General Purpose |
