Home > Products > RF/IF and RFID > RF Amplifiers > MC13770FCR2

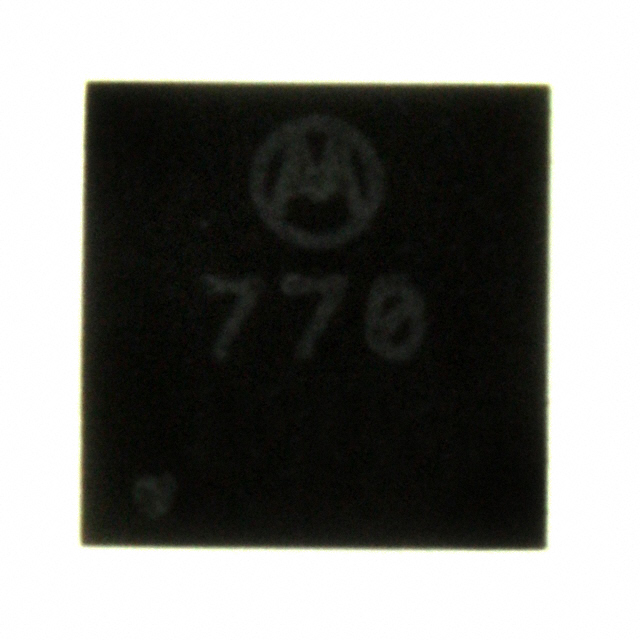

MC13770FCR2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MC13770FCR2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MC13770FCR2
Manufacturer	NXP Semiconductors / Freescale
Description	IC RF AMP W-CDMA 2.4GHZ 12QFN
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 4328 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	MC13770FCR2	Manufacturer	NXP Semiconductors / Freescale
Description	IC RF AMP W-CDMA 2.4GHZ 12QFN	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4328 pcs	Data sheet	MC13770
Category	RF/IF and RFID	Voltage - Supply	2.7 V ~ 3 V
Test Frequency	2.14GHz	Supplier Device Package	12-QFN (3x3)
Series	-	RF Type	W-CDMA
Packaging	Tape & Reel (TR)	Package / Case	12-VFQFN Exposed Pad
P1dB	-	Other Names	MC13770FCTR
Noise Figure	1.5dB	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Gain	15dB
Frequency	2.1GHz ~ 2.4GHz	Detailed Description	RF Amplifier IC W-CDMA 2.1GHz ~ 2.4GHz 12-QFN (3x3)
Current - Supply	8mA
