Home > Products > RF/IF and RFID > RF Transceiver ICs > MC13226VR2

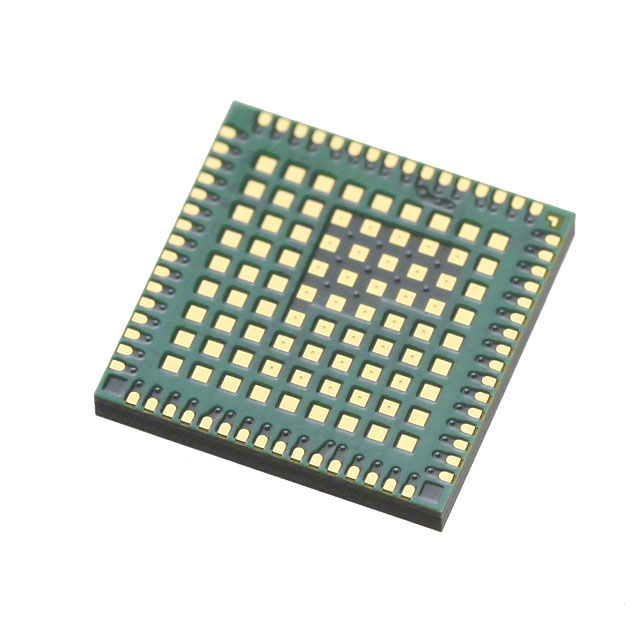

MC13226VR2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MC13226VR2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MC13226VR2
Manufacturer	NXP Semiconductors / Freescale
Description	IC RF TXRX+MCU 802.15.4 145TFLGA
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5772 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	MC13226VR2	Manufacturer	NXP Semiconductors / Freescale
Description	IC RF TXRX+MCU 802.15.4 145TFLGA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5772 pcs	Data sheet	MC1322x
Category	RF/IF and RFID	Voltage - Supply	2 V ~ 3.6 V
Type	TxRx + MCU	Series	-
Serial Interfaces	I²C, I²S, JTAG, SPI, UART	Sensitivity	-100dBm
RF Family/Standard	802.15.4	Protocol	Zigbee®
Power - Output	4dBm	Packaging	Tape & Reel (TR)
Package / Case	145-TFLGA	Operating Temperature	-40°C ~ 105°C
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Modulation	O-QPSK
Memory Size	128kB Flash, 80kB ROM, 96kB SRAM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
GPIO	64	Frequency	2.4GHz
Detailed Description	IC RF TxRx + MCU 802.15.4 Zigbee® 2.4GHz 145-TFLGA	Data Rate (Max)	250kbps
Current - Transmitting	29mA	Current - Receiving	22mA ~ 24mA
