Home > Products > RF/IF and RFID > RF Transceiver Modules > JN5169-001-M06-2Z

JN5169-001-M06-2Z

JN5169-001-M06-2Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JN5169-001-M06-2Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JN5169-001-M06-2Z
Manufacturer	NXP Semiconductors / Freescale
Description	JN5169-001-M06-2 ZIGBEE 3.0, ZIG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3570 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs
Reference Price (In US Dollars)	$12.624	$11.654	$10.682	$9.873

Product parameter
Data sheet

Product parameter

Part Number	JN5169-001-M06-2Z	Manufacturer	NXP Semiconductors / Freescale
Description	JN5169-001-M06-2 ZIGBEE 3.0, ZIG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3570 pcs	Data sheet	JN5169-001-M0x-2
Category	RF/IF and RFID	Voltage - Supply	2 V ~ 3.6 V
Utilized IC / Part	-	Series	-
Serial Interfaces	I²C, SPI, UART	Sensitivity	-96dBm
RF Family/Standard	802.15.4	Protocol	Zigbee®
Power - Output	10dBm	Packaging	Cut Tape (CT)
Package / Case	27-SMD Module	Other Names	568-13069 568-13069-1 568-13069-ND
Operating Temperature	-40°C ~ 85°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Modulation	-
Memory Size	512kB Flash, 4kB EEPROM, 32kB RAM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency	2.4GHz ~ 2.5GHz	Data Rate	-
Current - Transmitting	153mA	Current - Receiving	21.5mA
Antenna Type	Not Included, U.FL

Related products
Related news

Related products

JN5169/001K Image

Part#:~~JN5169/001K~~
Manufacturers:~~NXP Semiconductors / Freescale~~
Description:~~IC MCU IEEE802.15.4 512K 40HVQFN~~
In Stock:~~31384~~

~~$1.058/pcs~~RFQ

JN5169/001Z Image

Part#:~~JN5169/001Z~~
Manufacturers:~~NXP Semiconductors / Freescale~~
Description:~~IC RF TXRX+MCU 802.15.4 40-VFQFN~~
In Stock:~~25997~~

~~$1.387/pcs~~RFQ

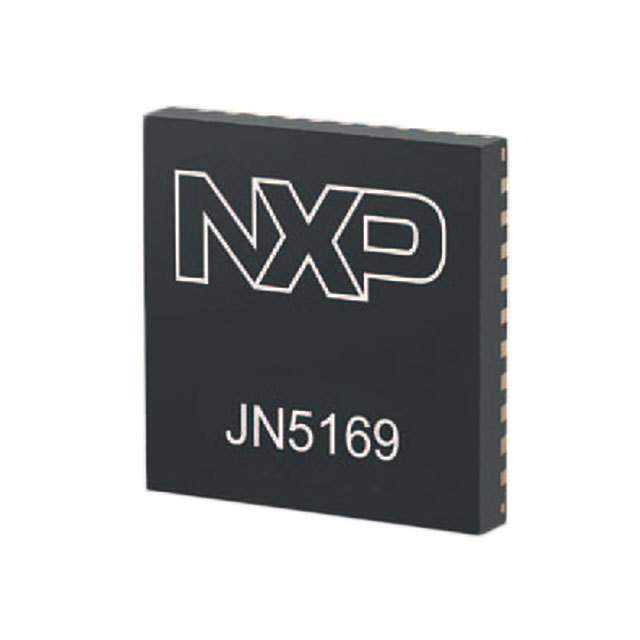

JN5169-001-M03-2Z Image
