Home > Products > RF/IF and RFID > RF Transceiver Modules > JN5148/001M00T,534

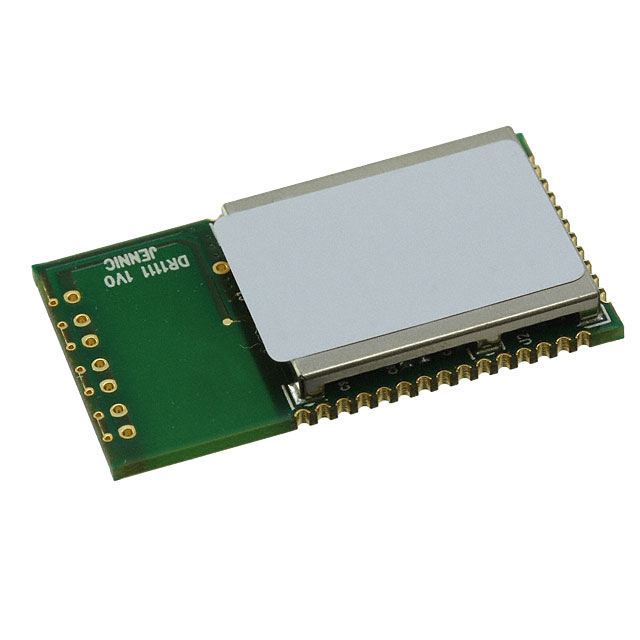

JN5148/001M00T,534

JN5148/001M00T,534

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JN5148/001M00T,534 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JN5148/001M00T,534
Manufacturer	NXP Semiconductors / Freescale
Description	RF TXRX MOD 802.15.4 TRACE ANT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4747 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	JN5148/001M00T,534	Manufacturer	NXP Semiconductors / Freescale
Description	RF TXRX MOD 802.15.4 TRACE ANT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4747 pcs	Data sheet	JN5148-001-Mxx Datasheet
Category	RF/IF and RFID	Voltage - Supply	2.7 V ~ 3.6 V
Utilized IC / Part	-	Series	JN5148
Serial Interfaces	I²C, SPI, UART	Sensitivity	-95dBm
RF Family/Standard	802.15.4	Protocol	Zigbee®
Power - Output	2.5dBm	Packaging	Tape & Reel (TR)
Package / Case	Module	Other Names	616-1045-2 935294034534 JN5148-001-M00T
Operating Temperature	-40°C ~ 85°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Modulation	-
Memory Size	128kB ROM, 128kB RAM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency	2.4GHz	Data Rate	-
Current - Transmitting	15mA	Current - Receiving	17.5mA
Antenna Type	Integrated, Trace
