IP4254CZ16-8,118

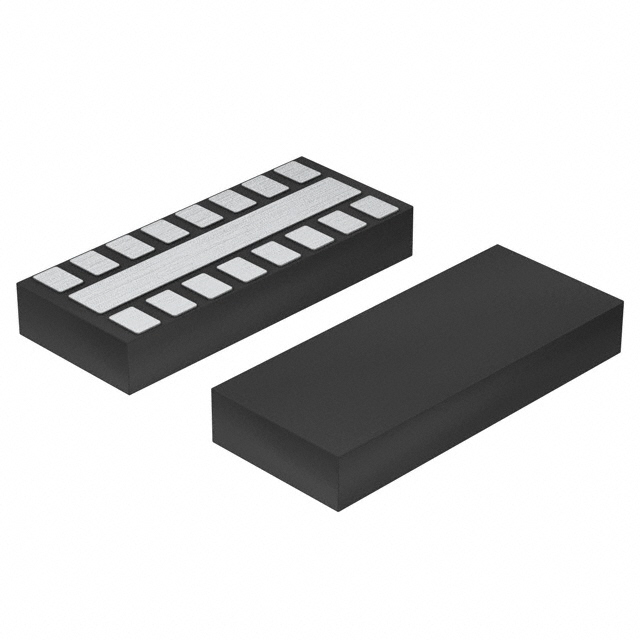

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IP4254CZ16-8,118 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IP4254CZ16-8,118 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IP4254CZ16-8,118 |
|---|---|
| Manufacturer | NXP Semiconductors / Freescale |
| Description | FILTER RC(PI) 100 OHM/30PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | IP4254CZ16-8,118 | Manufacturer | NXP Semiconductors / Freescale |
|---|---|---|---|
| Description | FILTER RC(PI) 100 OHM/30PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4454 pcs | Data sheet | |
| Category | Filters | Voltage - Rated | - |
| Values | R = 100 Ohms, C = 30pF (Total) | Type | Low Pass |
| Technology | RC (Pi) | Size / Dimension | 0.130" L x 0.053" W (3.30mm x 1.35mm) |
| Series | - | Resistance - Channel (Ohms) | 100 |
| Packaging | Tape & Reel (TR) | Package / Case | 16-XFDFN Exposed Pad |
| Other Names | 568-4727-2 934061286118 |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 8 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.020" (0.50mm) | Filter Order | 2nd |
| ESD Protection | Yes | Detailed Description | RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 100 Ohms, C = 30pF (Total) 16-XFDFN Exposed Pad |
| Center / Cutoff Frequency | - | Attenuation Value | 28dB @ 800MHz ~ 3GHz |
| Applications | LAN, WAN |
