Home > Products > Filters > EMI/RFI Filters (LC, RC Networks) > IP4065CX11/LF,135

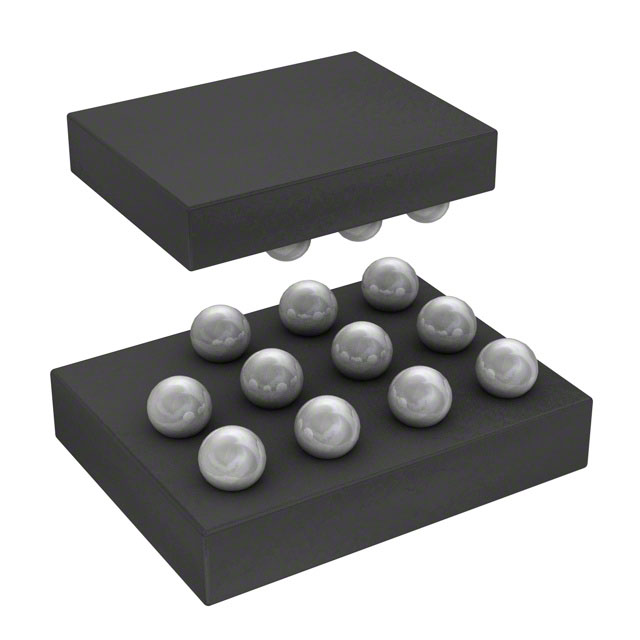

IP4065CX11/LF,135

IP4065CX11/LF,135

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IP4065CX11/LF,135 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	IP4065CX11/LF,135
Manufacturer	NXP Semiconductors / Freescale
Description	FILTER RC(PI) 33 OHM/27PF SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5972 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter

Product parameter

Part Number	IP4065CX11/LF,135	Manufacturer	NXP Semiconductors / Freescale
Description	FILTER RC(PI) 33 OHM/27PF SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5972 pcs	Data sheet
Category	Filters	Voltage - Rated	-
Values	R = 33 Ohms, C = 27pF	Type	Low Pass
Technology	RC (Pi)	Size / Dimension	0.077" L x 0.058" W (1.97mm x 1.47mm)
Series	-	Resistance - Channel (Ohms)	33, 1.3k, 17k, 15k
Packaging	Tape & Reel (TR)	Package / Case	11-WFBGA, WLCSP
Other Names	568-7178-2 934057851135 IP4065CX11/LF,135-ND	Operating Temperature	-30°C ~ 85°C
Number of Channels	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height	0.026" (0.65mm)	Filter Order	2nd
ESD Protection	Yes	Detailed Description	RC (Pi) EMI Filter 2nd Order Low Pass 2 Channel R = 33 Ohms, C = 27pF 11-WFBGA, WLCSP
Center / Cutoff Frequency	-	Attenuation Value	-
Applications	USB
